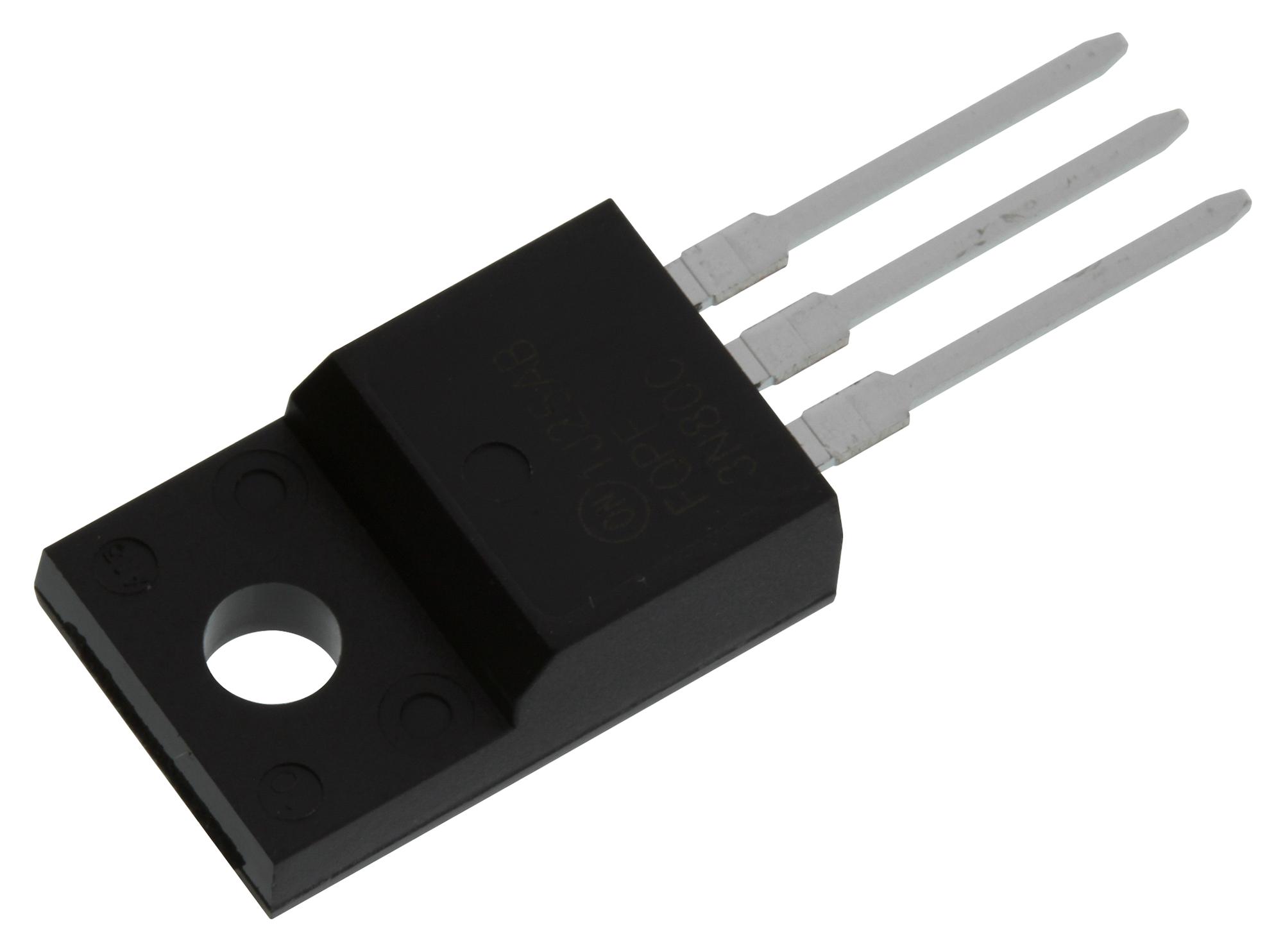

ONSEMI FQPF3N80C Power MOSFET
The FQPF3N80C is an N-channel enhancement-mode power MOSFET manufactured using planar stripe and DMOS technologies. It features low ON-state resistance, excellent switching performance, and high avalanche energy robustness. This device is ideal for applications such as switched-mode power supplies, active power factor correction (PFC), and electronic lamp ballasts. It also offers low gate charge of 13nC, low reverse transfer capacitance (Crss) of 5.5pF, and has been 100% avalanche tested.
ONSEMI FQPF3N80C Power MOSFET Specifications:
- Vds: 800 V
- Id: 3 A (at 25°C)
- Vgs: ±30 V
- Rds(on): 4.8 Ω @ Vgs = 10 V
- Gate Charge: 13 nC
- Crss: 5.5 pF
- Pulse Energy (Avalanche): 320 mJ
- Operating Temperature Range: -55°C to +150°C
- Maximum Power Dissipation: 3 W
- Package: TO-220F
Buy the Fairchild Series Power MOSFET: FQPF3N80C
Purchase the Fairchild Power MOSFET FQPF3N80C online today to ensure high-efficiency switching with low gate charge and high avalanche energy resilience. Designed for demanding applications like power supplies, PFC, and electronic ballasts, this device offers excellent performance and reliability. Enjoy swift delivery and expert support by ordering directly online, securing a robust component that meets your high-voltage switching needs. Ideal for professional engineers seeking durable, high-performance power transistors for critical electronic systems.
Buy Fairchild FQPF3N80C now and experience unmatched reliability and high-voltage switching performance.
Frequently Asked Questions
Where can I buy ONSEMI FQPF3N80C?
You can click on the BUY or RFQ button to purchase FQPF3N80C from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FQPF3N80C?
You can download the FQPF3N80C datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FQPF3N80C?
ONSEMI
