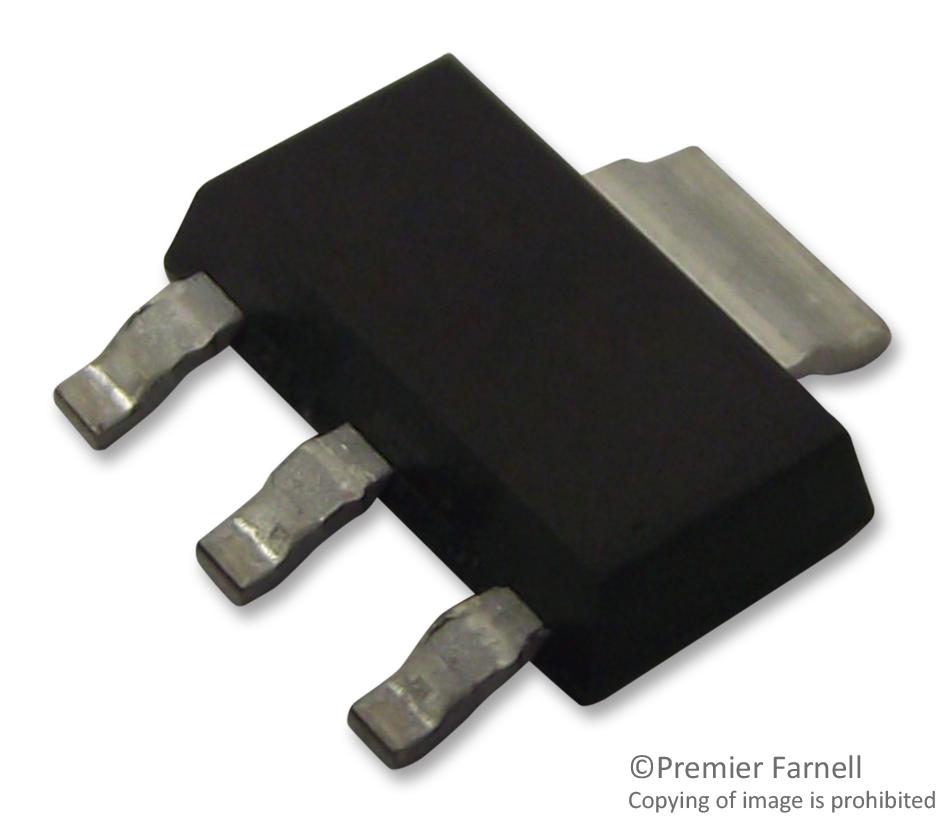

ONSEMI FQT1N60CTFWS Power MOSFET
This high-voltage N-Channel power MOSFET is designed for switching applications such as power supplies, active power factor correction, and electronic lamp ballasts. Manufactured using proprietary planar stripe and DMOS technology, it offers low on-state resistance, high avalanche energy strength, and superior switching performance. Suitable for professional power management systems, it features a drain-to-source voltage of 600V, a continuous drain current of 0.2A, and is RoHS compliant. Its robust design ensures reliable operation in demanding industrial environments, with excellent thermal and switching characteristics for efficient power control.
ONSEMI FQT1N60CTFWS Power MOSFET Specifications:
- Drain-to-Source Voltage: 600 V
- Gate-to-Source Voltage: ±30 V
- Continuous Drain Current at 25°C: 0.2 A
- Pulsed Drain Current: 0.8 A
- Drain Pulsed Avalanche Energy: 33 mJ
- Power Dissipation at 25°C: 24 W
- Operating Temperature Range: -55°C to +150°C
- Thermal Resistance Junction to Ambient: 60°C/W
- Gate Charge at 10V: 48-62 nC
- Output Capacitance: 19-25 pF
- Switching Delay Times: 7-24 ns
- Body Diode Forward Voltage: 1.4 V at 0.2 A
- Maximum Lead Soldering Temperature: 300°C for 5 seconds
Buy the Fairchild FQT1N60C – Reliable Power MOSFET for Industrial Applications
Secure your power management needs with the FQT1N60C power MOSFET from Fairchild. Featuring 600V voltage capacity, 0.2A continuous drain current, and low Rds(on), it ensures efficient switching for industrial power supplies, active PFC, and electronic ballasts. Its robust thermal and avalanche energy characteristics guarantee reliability and durability in demanding environments. Purchase online today and leverage superior switching performance, high avalanche energy strength, and RoHS compliance for your industrial applications.
Buy Fairchild FQT1N60C now and experience unmatched reliability and high-voltage switching performance for industrial power projects.
