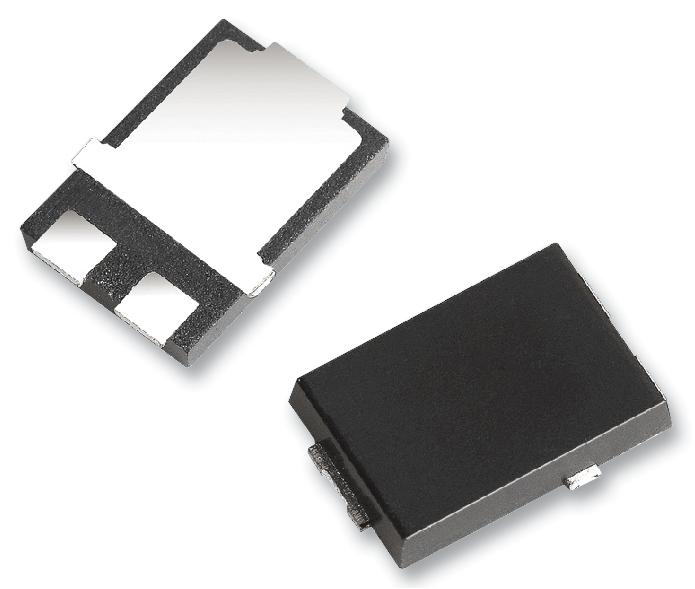

ONSEMI FSV1060V Schottky Rectifier
The FSV1060V is an ultra-low forward voltage Schottky rectifier optimized for compact power management and portable device applications. Featuring a small, flat-lead TO-277 package with a height of only 1.1mm, it offers a typical forward voltage drop of 0.2 V at 1 A and sinks just 13 mA reverse current at high temperature. Its low thermal resistance ensures efficient heat dissipation, making it ideal for space-constrained applications like mobile chargers, solar panels, and reverse polarity protection. Certified for wave soldering, it is RoHS compliant, halogen free, and suitable for industrial and communications equipment.
ONSEMI FSV1060V Schottky Rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 60 V
- Working Peak Reverse Voltage: 60 V
- RMS Reverse Voltage: 42 V
- Average Rectified Output Current: 10 A at 90°C
- Forward Voltage Drop: 0.20 V at 1 A, 0.46 V at 10 A
- Peak Forward Surge Current: 280 A
- Junction Capacitance: 550 pF at VR=4V, 1 MHz
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance Junction-to-Ambient: 105 °C/W
- Junction-to-Lead Thermal Resistance: 13 °C/W (anode), 8 °C/W (cathode)
- Package: TO-277 3L
- Qualifies for wave soldering, RoHS compliant, halogen free
Buy the ON Semiconductor Series 10A Ultra-Low VF Schottky Rectifier: FSV1060V
Purchase the ON Semiconductor FSV1060V Schottky Rectifier online today for high-performance, space-efficient power management. Its ultra-low forward voltage and small profile make it perfect for mobile chargers, solar panels, and reverse polarity protection circuits. Certified for wave soldering, RoHS compliant, and halogen free, this rectifier ensures reliable operation in compact designs and demanding environments. Get fast shipping and quality assured by buying directly through our online store—perfect for engineers and technicians seeking dependable power components.
Order your ON Semiconductor Series 10A Ultra-Low VF Schottky Rectifier FSV1060V today and give your power circuits the efficiency and reliability they need.
Frequently Asked Questions
Where can I buy ONSEMI FSV1060V?
You can click on the BUY or RFQ button to purchase FSV1060V from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FSV1060V?
You can download the FSV1060V datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FSV1060V?
ONSEMI
