ONSEMI BAT54M3T5G Schottky Diode
The BAT54M3T5G is a surface-mount Schottky barrier diode optimized for high-speed switching, circuit protection, and voltage clamping in compact electronic designs. Featuring an extremely low forward voltage of approximately 0.35V at 10mA, it ensures minimal conduction losses. With a reverse voltage rating of 30V and fast recovery time of 5.0 ns, this diode enhances efficiency in low-power, space-constrained applications. Its Pb-Free, Halogen-Free, RoHS compliance makes it ideal for automotive and portable electronics, providing reliable performance in demanding environments.
ONSEMI BAT54M3T5G Schottky Diode Specifications:
- Reverse Voltage: 30 V
- Forward Voltage: 0.22 V (at 0.1 mA), 0.35 V (at 10 mA)
- Maximum Forward Power Dissipation: 200 mW
- Maximum Forward Current: 200 mA
- Repetitive Peak Forward Current: 300 mA
- Junction Temperature Range: -55°C to +125°C
- Total Capacitance: 7.6 pF (at 1.0 V, 1.0 MHz)
- Reverse Leakage Current: 2.0 μA (at 25 V)
- Reverse Recovery Time: 5.0 ns
- Package: SOT-723, Dimensions: Millimeters as specified
- Compliance: RoHS, Halogen Free, Pb-Free, AEC-Q101 qualified

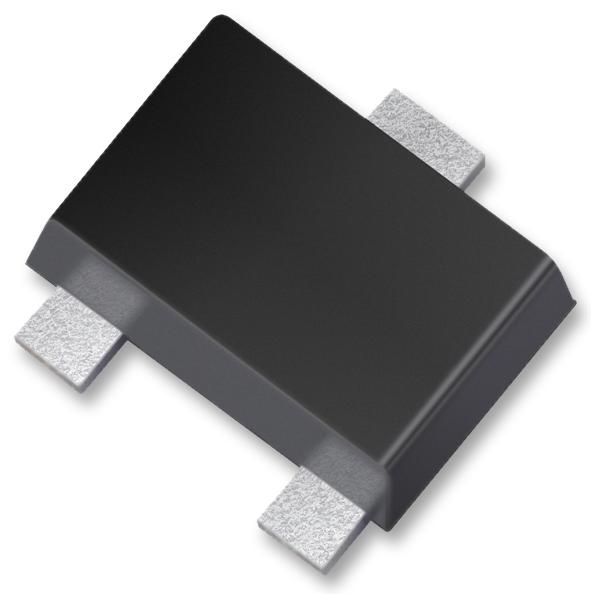

Buy the Buy ON Semiconductor Schottky Barrier Diode Part Number BAT54M3T5G Online
Purchase the ON Semiconductor BAT54M3T5G Schottky Barrier Diode online today to ensure high-speed switching and reliable circuit protection in your electronic projects. Its compact SOT-723 package and low forward voltage of approximately 0.35V provide efficient performance while saving valuable space. Designed for low-power applications, including automotive and portable electronics, this diode offers fast recovery time of 5 ns, with a reverse voltage rating of 30V and compliance with RoHS standards. Order now for quick delivery and optimum performance.
Buy ON Semiconductor BAT54M3T5G now and experience unmatched reliability with fast switching speeds and low forward voltage ideal for space-constrained circuits.
Frequently Asked Questions
Where can I buy ONSEMI BAT54M3T5G?
You can click on the BUY or RFQ button to purchase BAT54M3T5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part BAT54M3T5G?
You can download the BAT54M3T5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of BAT54M3T5G?
ONSEMI
