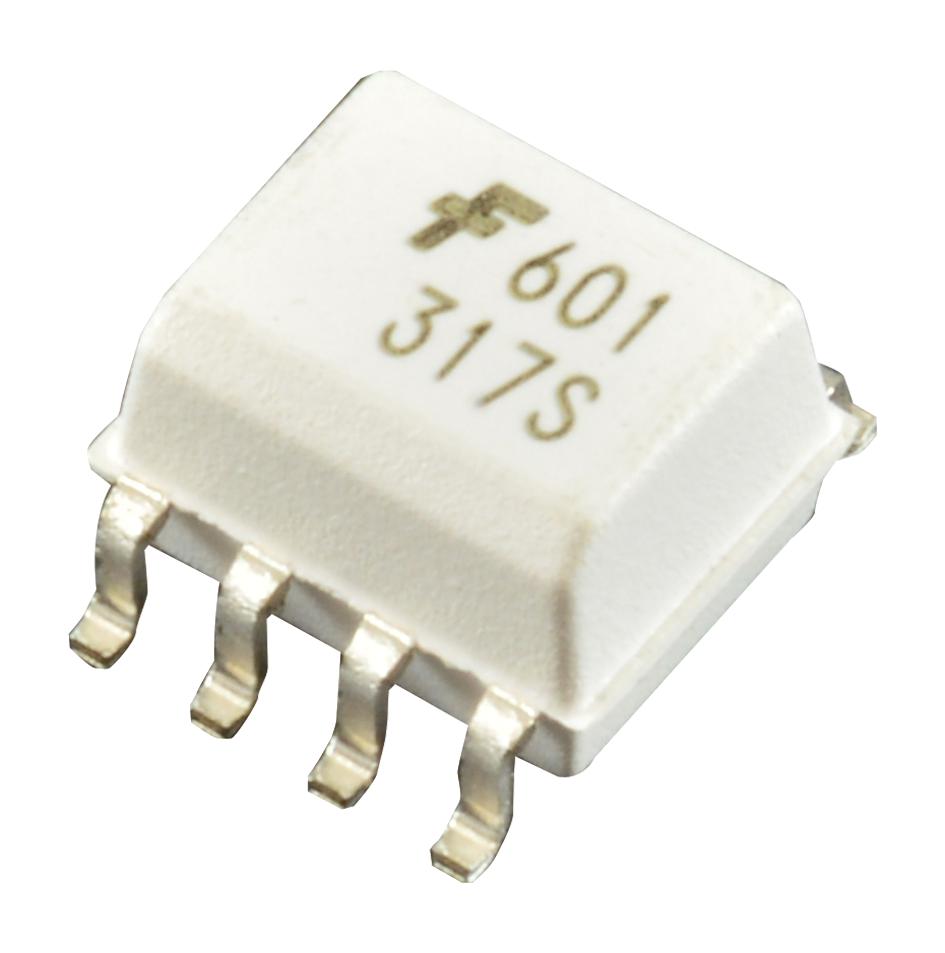

ONSEMI HCPL0601 High-Speed Optocoupler
The HCPL-0601 is a high-speed, single-channel optocoupler capable of data rates up to 10 Mbps. It features an AlGaAs LED that optically couples to a high-speed integrated logic gate with a strobable output, suitable for power management, motor control, industrial automation, and computer interfaces. Its open-collector output allows wired-OR configurations. With internal noise shielding for superior common-mode rejection, it operates reliably from -40°C to +85°C. Variants with CMOS outputs reduce power consumption. Designed for industrial and electronic control applications, ensuring fast, reliable data transmission in harsh environments.
ONSEMI HCPL0601 High-Speed Optocoupler Specifications:
- Package Type: SO8 small-outline package
- Maximum Data Rate: 10 Mbps
- Input: AlGaAs LED, forward current 50 mA
- Output: High-speed logic gate with strobable open-collector output
- Temperature Range: -40°C to +85°C
- Isolation Voltage: Not specified
- Power Dissipation: 45 mW (single channel)
- Common-Mode Rejection: Internal noise shield for superior rejection
- Bit Rate Compatibility: LSTTL, TTL, 5V CMOS
- Variants: HCPL0637, HCPL0638, HCPL0639 with CMOS outputs for lower power
- Application: Data transmission, line receiver, switching power supplies, industrial automation, motor drives
Buy the Fairchild Series HCPL: High-Speed Optocoupler HCPL0601
Buy the Fairchild HCPL0601 online today to ensure fast, reliable data transmission in industrial automation, motor control, and electronics projects. This high-speed optocoupler supports data rates up to 10 Mbps, making it ideal for power management, computer peripherals, and control systems. Its open-collector output allows wired-OR configurations, providing versatility for complex circuits. Designed to operate within -40°C to +85°C temperature range, it offers excellent noise immunity and reliable performance. Purchase now for dependable, high-speed optoelectronic isolation solutions.
Get Fairchild HCPL0601 today—built for high-speed data transfer and industrial automation reliability.
