ONSEMI MC74LCX125DTR2G Quad Buffer
The MC74LCX125 is a high-performance, low-voltage CMOS quad buffer designed for operation from 2.3 to 3.6 V supply voltage. It features 5 V-tolerant inputs and outputs compatible with TTL logic, supporting applications such as memory address driving and TTL level bus transceivers. It offers high impedance when disabled, a maximum drive current of 24 mA, and low static power consumption. The device supports live insertion, has a high noise immunity, and exceeds 500 mA latchup performance, making it suitable for various digital systems requiring efficient signal buffering and level translation.
ONSEMI MC74LCX125DTR2G Quad Buffer Specifications:
- Supply Voltage: 2.0 to 3.6 V, Data Retention only 15 to 3.6 V
- Input Voltage Range: 0 to 5.5 V
- Output Voltage: 0 to Vcc
- High Level Output Current: 24 mA at Vcc = 3.0–3.6 V
- Low Level Output Current: -24 mA at Vcc = 3.0–3.6 V
- Input Diode Current: -50 mA (DC)
- Output Diode Current: 50 mA (DC)
- Maximum Power Dissipation: 250 mW per package
- Operating Temp Range: -40°C to +85°C
- Propagation Delay Time: 1.5 to 7.2 ns (typical)
- Capacitance: Input 7 pF, Output 8 pF
- Package Types: SOIC-14, TSSOP-14
- Latchup Performance: >500 mA
- ESD Protection: >2000 V Human Body Model
- Tight voltage tolerance, supports live insertion, and delivers balanced source/sink current.

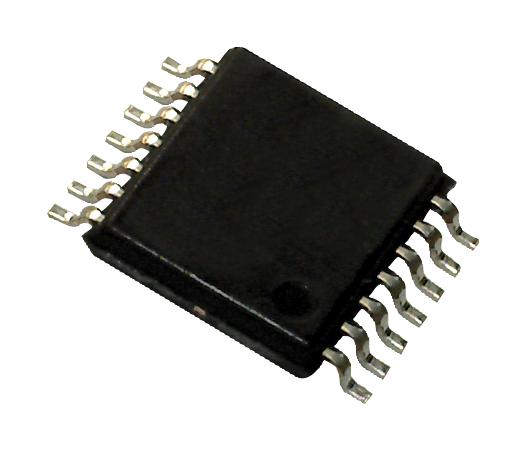

Buy the Buy ON Semiconductor MC74LCX125DTR2G Part Number MC74LCX125DTR2G Online
Order the ON Semiconductor MC74LCX125DTR2G online today and enjoy fast delivery. This high-performance, low-voltage quad buffer supports 2.3 to 3.6 V operation, ensuring efficient signal amplification, level shifting, and bus driving. Its TTL compatibility, high noise immunity, and low static power consumption make it ideal for memory address driving and digital system interfaces. With 24 mA current drive capability and robust latchup performance, it offers reliable operation for demanding electronic applications. Purchase now to enhance your circuit’s performance and system stability.
Buy ON Semiconductor MC74LCX125DTR2G now and experience unmatched reliability and performance in signal buffering and voltage level translation.
