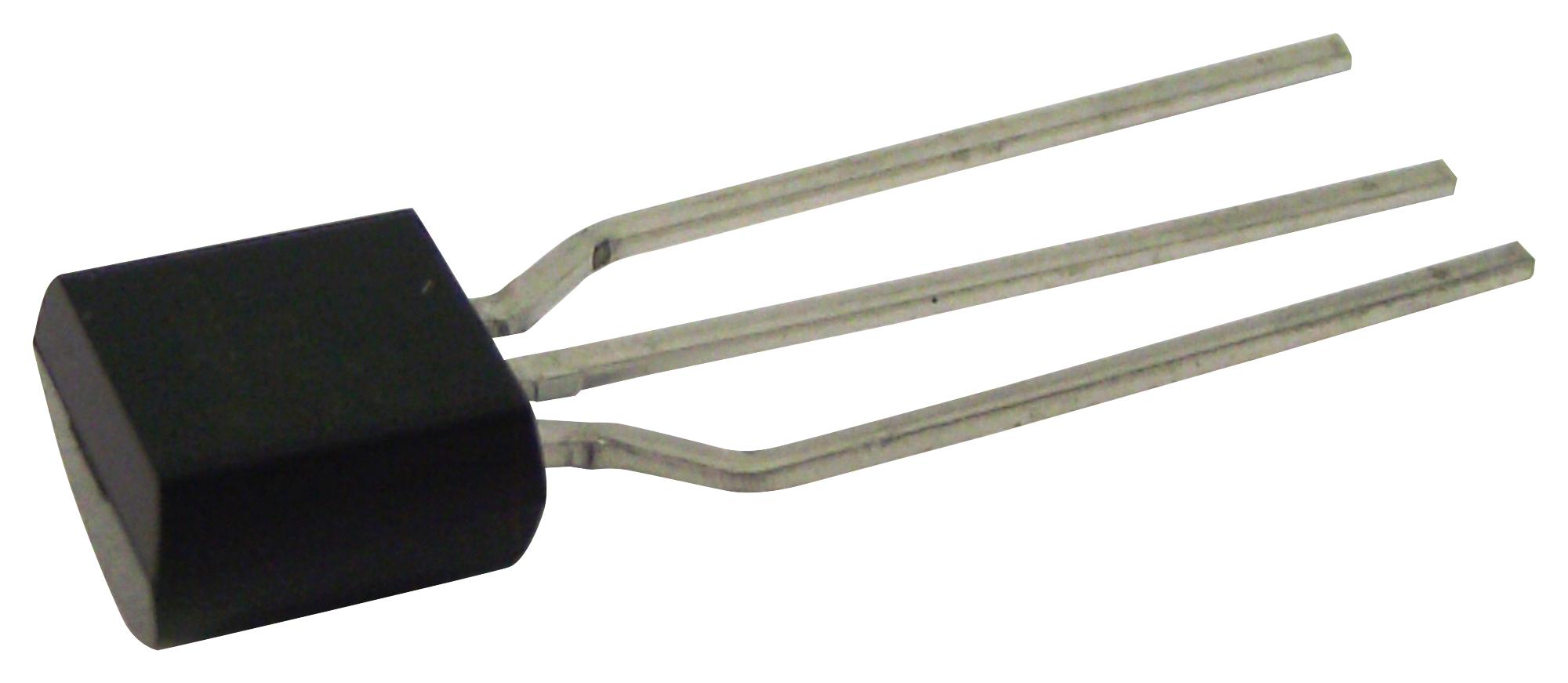

ONSEMI J112D26Z Analog Switch
This low-level analog switch features high reliability and is ideal for sample and hold circuits, chopper stabilized amplifiers, and related applications. It offers interchangeable source and drain terminals, sourced from process 51 technology, ensuring versatile usage. Available in TO-92 package, it provides efficient switching with a maximum drain-source resistance of 50 milliohms, gate threshold voltage between -1.0V and -5.0V, and drain cutoff leakage current less than 1.0 nA. Suitable for precision analog switching, it ensures stable performance across a wide temperature range from -55°C to 150°C, with thermal resistance junction-to-ambient of 357°C/W.
ONSEMI J112D26Z Analog Switch Specifications:
- Package: TO-92
- Maximum Drain-Source Resistance: 50 mΩ
- Gate Threshold Voltage: -1.0 V to -5.0 V
- Drain Cutoff Leakage Current: <1.0 nA at 5 V
- Gate-Source Voltage: ±35 V
- Forward Gate Current: 50 mA
- Operating Temperature Range: -55°C to 150°C
- Total Device Dissipation: 625 mW (Jatt), 350 mW (MMBFJ111/112/113)
- Thermal Resistance Junction-to-Case: 125°C/W
- Thermal Resistance Junction-to-Ambient: 357°C/W
- Device Type: N-Channel Switch
- Designed for low-level analog switching, sample and hold circuits, chopper-stabilized amplifiers
- Interchangeable Source and Drain terminals
Buy the Fairchild J112D26Z – Reliable Analog Switch for Industrial Applications
Order the Fairchild J112D26Z online today and secure this high-quality N-channel switch designed for precise analog switching, sample and hold, and stabilizer circuits. Available in TO-92 package, it features low on-resistance, excellent thermal stability, and a wide operating temperature range from -55°C to 150°C. Perfect for industrial equipment, automation, and instrumentation, this device ensures reliable performance and easy integration into your designs. Purchase now for fast delivery and technical support, ensuring optimal functionality in demanding applications.
Buy Fairchild J112D26Z now and experience unmatched reliability and performance in precision analog switching circuits.
Frequently Asked Questions
Where can I buy ONSEMI J112D26Z?
You can click on the BUY or RFQ button to purchase J112D26Z from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part J112D26Z?
You can download the J112D26Z datasheet or visit the ONSEMI website for support.
Who is the manufacturer of J112D26Z?
ONSEMI
