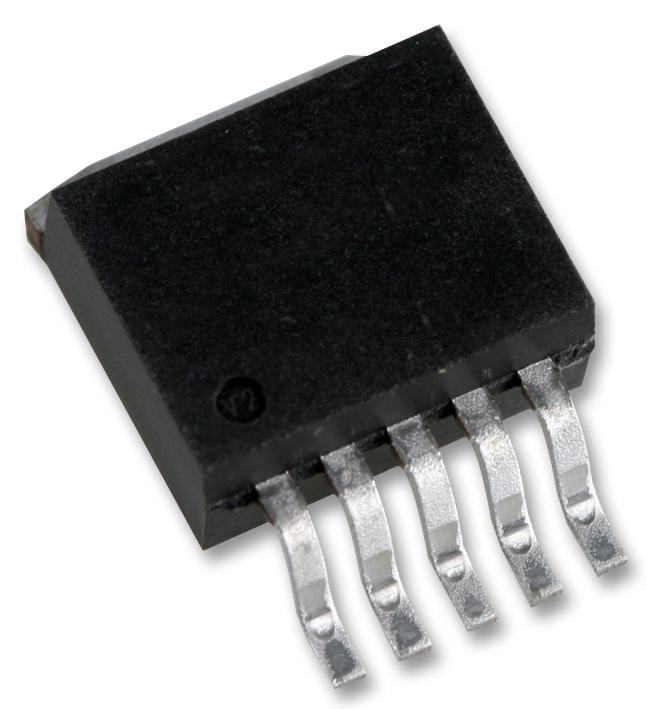

ONSEMI LM2576D2TADJG Switching Regulator
The LM2576 is a high-efficiency, monolithic step-down switching regulator capable of driving a 3.0 A load with excellent regulation across a wide input voltage range. Available in fixed voltage versions (3.3 V, 5 V, 12 V, 15 V) and adjustable models, it requires only four external components for easy implementation. Its features include cycle-by-cycle current limiting, thermal shutdown, high efficiency, and TB optional shutdown, making it ideal for battery chargers, pre-regulators, and power supply applications. Package options include TO-220 and D2PAK, suitable for various thermal management needs.
ONSEMI LM2576D2TADJG Switching Regulator Specifications:
- Maximum Load Current: 3.0 A
- Input Voltage Range: Up to 40 V
- Output Voltages: Fixed (3.3 V, 5 V, 12 V, 15 V) and Adjustable (1.23 V to 37 V)
- Switching Frequency: 52 kHz
- Thermal Shutdown: Yes
- Cycle-by-cycle current limiting: Yes
- Package Types: TO-220, D2PAK
- Maximum Junction Temperature: 125°C
- Efficiency: Up to 88%
- Operating Junction Temperature Range: -40°C to +125°C
- Requires 4 External Components for operation
- Includes soft-start, enable, and shutdown features
- Pb-Free Packaging Available
Buy the ON Semiconductor LM2576 – Reliable Switching Regulator for Industrial Applications
Enhance your power circuitry with the reliable LM2576 switching regulator, capable of delivering 3.0 A current with high efficiency. Available in fixed and adjustable output versions, it simplifies design with minimal external components. Its features include cycle-by-cycle current limiting, thermal shutdown, and high conversion efficiency, making it ideal for battery chargers, power supplies, and industrial applications. Packaged in TO-220 and D2PAK options, the LM2576 guarantees stable operation over a wide temperature range and ensures a long service life for your critical systems.
Buy ON Semiconductor LM2576 now and experience unmatched reliability and performance in your power supply designs, battery chargers, and industrial systems.
Frequently Asked Questions
Where can I buy ONSEMI LM2576D2TADJG?
You can click on the BUY or RFQ button to purchase LM2576D2TADJG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM2576D2TADJG?
You can download the LM2576D2TADJG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM2576D2TADJG?
ONSEMI
