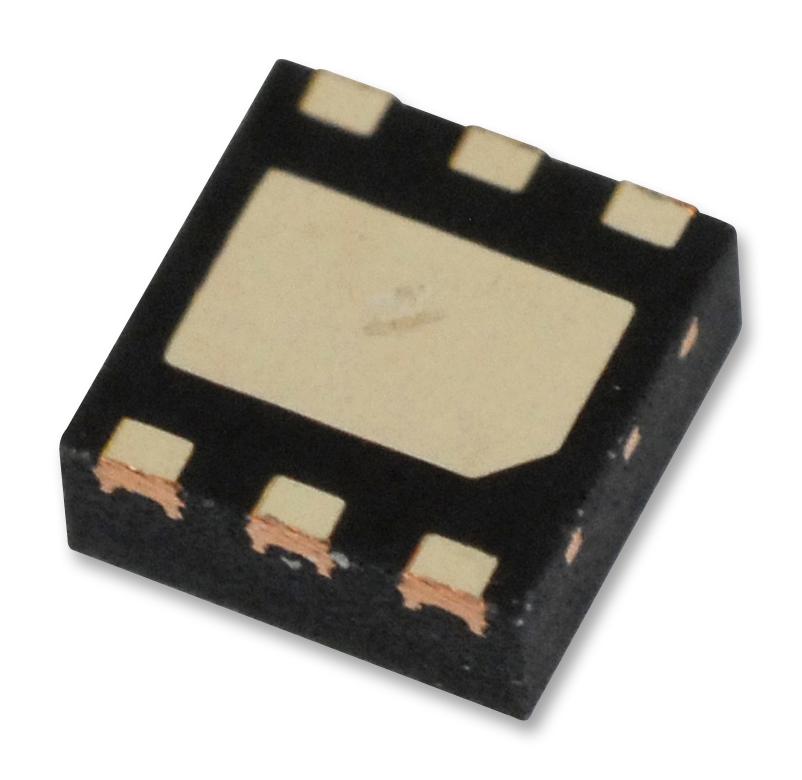

ONSEMI NCV8720BMTW110TBG Low Dropout Voltage Regulator
The NCV8720 is a low-dropout, 350 mA CMOS voltage regulator designed for space-constrained, noise-sensitive applications. It features separate bias supply voltage control, built-in soft-start, and excellent thermal and electrical stability. Suitable for automotive, industrial, and consumer electronics, the device provides accurate output voltage, low noise, and efficient operation with ultralow dropout voltage, making it ideal for point of load regulation, FPGA power supplies, and battery-powered systems. Its robust design includes thermal shutdown and current limit protections, ensuring high reliability in demanding environments.
ONSEMI NCV8720BMTW110TBG Low Dropout Voltage Regulator Specifications:
- Input Voltage Range: 0.8 V to 5.5 V
- Output Voltage Range: 0.8 V to 2.1 V
- Bias Voltage Range: 2.4 V to 5.5 V
- Output Current Limit: 420 mA to 1000 mA
- Dropout Voltage: 110 mV typical at 350 mA
- Bias Pin Current: 80 to 110 µA
- Operating Temperature Range: -40°C to +125°C
- Thermal Resistance, Junction-to-Air: 65 °C/W
- Maximum Junction Temperature: 150 °C
- Package: WDFN6 2 mm x 2 mm
- Built-in soft-start with monotonic Vout rise
- Thermal shutdown and current limit protections
- Enable pin with hysteresis
- Low noise and high PSRR
- Designed for automotive, consumer, and industrial applications
Buy the ON Semiconductor Series VLDO Low Dropout Voltage Regulator: NCV8720BMTW110TBG
Purchase the ON Semiconductor NCV8720BMTW110TBG online today—engineered for low noise, high reliability, and efficient power regulation in noise-sensitive, space-constrained applications such as automotive electronics, FPGA power supplies, and battery-operated systems. Designed with built-in protections including thermal shutdown and current limiting, this device ensures stable output performance even under demanding conditions. Its small WDFN6 package, low dropout voltage, and adjustable output make it the perfect choice for precision power regulation needs in industrial, consumer, and automotive electronics.
Get ON Semiconductor NCV8720BMTW110TBG today—built for precision and long-lasting durability in low-voltage power regulation.
Frequently Asked Questions
Where can I buy ONSEMI NCV8720BMTW110TBG?
You can click on the BUY or RFQ button to purchase NCV8720BMTW110TBG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCV8720BMTW110TBG?
You can download the NCV8720BMTW110TBG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCV8720BMTW110TBG?
ONSEMI
