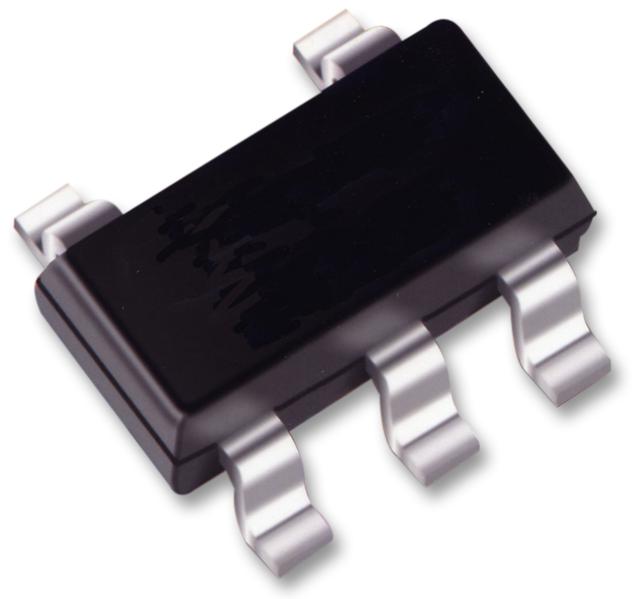

ONSEMI M74VHC1GT00DFT2G Digital Logic Gate
The MC74VHC1GT00 is a high-speed, single 2-input NAND gate with CMOS logic level shifting capability, designed for interfacing 3 V and 5 V logic circuits. It features TTL-compatible inputs, full 5 V CMOS output levels, overvoltage tolerance up to 7 V, and protection against supply and input/output mismatches. Ideal for digital signal processing, logic translation, and mixed-voltage systems, this device offers low power dissipation, balanced propagation delays, and is suitable for automotive, industrial, and general digital applications. It complies with ROHS, is Pb-free, and supports hot-insertion scenarios.
ONSEMI M74VHC1GT00DFT2G Digital Logic Gate Specifications:
- DC Supply Voltage: 3.0 to 5.5 V
- Input Voltage: 0.0 to 7.0 V (overvoltage tolerant up to 7 V)
- Output Voltage: Vout > 0.8 V at load, Vout < 0.1 V at load
- Propagation Delay: 3.1 ns typical at 5 V
- Input Threshold: VIL = 0.8 V, VIH = 2.0 V
- Power Dissipation: Max 150 mW at 85°C
- Input Diode Current: 20 mA max
- DC Output Current per Pin: 25 mA
- Storage Temperature Range: -65°C to +150°C
- Junction Temperature: Up to +150°C
- ESD Handling Voltage: > 2000 V (Human Body Model)
- Package Types: SC70-5, SOT23-5, TSOP-5, SOT-353
- RoHS compliant, Pb-Free
Buy the ON Semiconductor Series High-Speed CMOS Logic Level Shifter: M74VHC1GT00
Purchase the ON Semiconductor MC74VHC1GT00 today to enable reliable, high-speed digital logic signal translation and interfacing in your circuit designs. This single 2-input NAND gate offers CMOS logic level shifting, TTL compatibility, and overvoltage tolerance up to 7 V, making it ideal for mixed-voltage systems. Its low power dissipation and protection features ensure long-term durability, supporting automotive, industrial, and general digital applications. Easily order online for fast delivery and seamless integration into your electronic projects.
Get ON Semiconductor MC74VHC1GT00 today—built for precision, low power consumption, and excellent noise immunity in digital logic interfaces.
