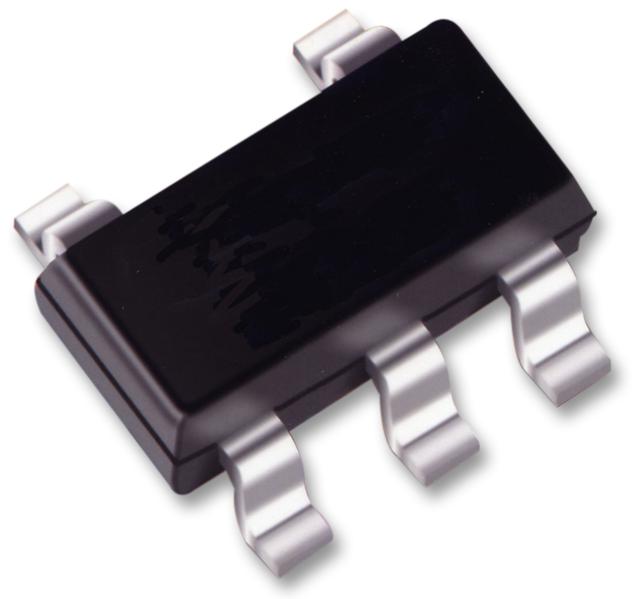

ONSEMI M74VHC1GT125DT1G Non-Inverting Buffer
This device is a single gate non-inverting buffer and CMOS logic level shifter built with silicon gate CMOS technology. It offers high-speed operation comparable to bipolar Schottky TTL while maintaining low power consumption typical of CMOS devices. The device features a 3-state output control (OE), which when set high, places the output in a high-impedance state. The input is compatible with TTL-level thresholds, and the output provides a full 5V CMOS level swing. Input protection circuitry allows overvoltage tolerance up to 7V, enabling for use as a logic-level translator between 3V and 5V CMOS logic, or 1.8V and 3V CMOS logic, even when operating at higher supply voltages. The device ensures protection when VCC is at 0V and supports interfacing between different logic levels. It includes power-down protection on inputs and outputs, balanced propagation delay, and is pin and function compatible with other standard logic families. The input structure is LSTTL-compatible, with a complexity of 62 FETs and 16 equivalent gates. Typical propagation delay is 3.5ns at VCC = 5V, with a maximum supply current of 1μA at room temperature. This component is suited for industrial, automation, process control, and automotive applications. Please note that market demand has extended lead times, causing potential delivery fluctuations; this product is not eligible for discounts.
ONSEMI M74VHC1GT125DT1G Non-Inverting Buffer Specifications:
- DC Supply Voltage: -0.5 to +7.0 V
- Input Voltage: 0.0 to 7.0 V
- Output Voltage: 0.0 to Vcc
- Operating Temperature Range: -55°C to +125°C
- Propagation Delay: 3.5 ns at Vcc = 5V
- Maximum Power Dissipation: 200 mW
- Maximum DC Output Current per Pin: 25 mA
- High-Level Output Voltage: > 0.8 V at 4 mA load
- Input High Threshold: > 0.8 V
- Input Low Threshold: < 0.5 V
- Input Protection Tolerance: Up to 7 V
- ESD Withstand Voltage: > 2000 V Human Body Model
- Package Types: SC-88A / SOT-353 / SC-70, TSOP-5 / SOT-23 / SC-59
- RoHS Compliant, Pb-Free
Buy the Buy ON Semiconductor MC74VHC1GT125 Part Number DT1G Online
Purchase the ON Semiconductor MC74VHC1GT125 today to ensure your projects benefit from a high-speed CMOS buffer and logic level shifter. This device offers LSTTL-compatible inputs, a 3-state output with high impedance, and overvoltage tolerance up to 7V, making it ideal for interfacing different logic levels in industrial automation, automotive, and control systems. Its low power dissipation, balanced propagation delays, and robust input/output protection mechanisms make it suitable for high-reliability applications. Available now for fast, secure online ordering, this component enhances system performance and simplifies circuit design.
Order your ON Semiconductor MC74VHC1GT125 surface-mount buffer and level shifter today and enhance your logic interface projects with reliable, high-speed CMOS technology.
