ONSEMI 2SK37031E Power MOSFET
The 2SK3703 is an N-channel power MOSFET capable of handling 60V and 30A, designed for high-efficiency switching applications. Features include a typical ON-resistance of 20mΩ, input capacitance of 1780pF, and a TO-220F-3SG package. It offers reliable performance with a maximum drain-to-source voltage of 60V, allowing for safe operation at high currents and voltages. Its low gate charge and fast switching times make it suitable for power management, motor control, and high-frequency switching in industrial and consumer electronics. The device is lead-free and certified for various safety standards.
ONSEMI 2SK37031E Power MOSFET Specifications:
- Drain-to-Source Voltage: 60V
- Drain Current (DC): 30A
- Allowable Power Dissipation: 20W
- Input Capacitance: 1780pF
- Total Gate Charge: 40nC
- Gate-to-Source Voltage: ±20V
- Static Drain-to-Source On-Resistance: 20-40mΩ
- Switching Times (Turn-On Delay: 16.5ns, Rise Time: 110ns, Turn-Off Delay: 166ns, Fall Time: 144ns)
- Package: TO-220F-3SG
- Maximum Operating Temperature: 150°C
- Storage Temperature: -55°C to +150°C
- Avalanche Energy (single pulse): 135mJ
- Avalanche Current: 30A
- Maximum Gate-Source Voltage: 20V

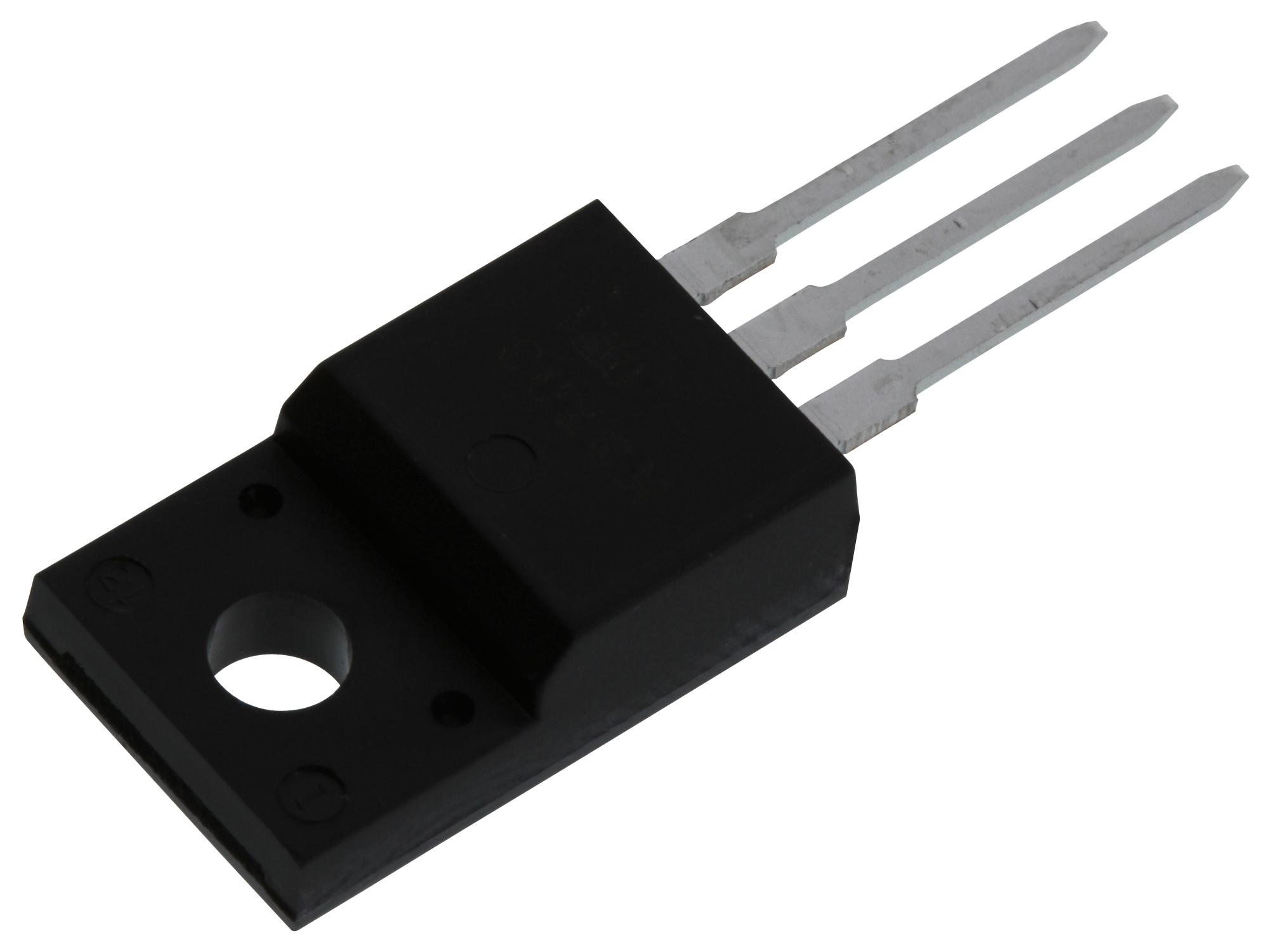

Buy the Buy ON Semiconductor 2SK3703 Part Number 2SK3703-1E Online
Order the ON Semiconductor 2SK3703 power MOSFET online today to enhance your power management systems with high efficiency and robust performance. This N-channel device supports operating voltages up to 60V and currents of 30A, making it ideal for industrial power supplies, motor control, and switch mode power supplies. It features a low ON-resistance of 20mΩ, ensuring minimal power loss. Packaged in TO-220F-3SG, it is lead-free and compliant with safety standards. Purchase now for lasting durability and optimized switching performance in your electronics projects!
Get ON Semiconductor 2SK3703 today—designed for high-current switching with low RDS(on) and fast switching times, ensuring reliable, power-efficient operation.
Frequently Asked Questions
Where can I buy ONSEMI 2SK37031E?
You can click on the BUY or RFQ button to purchase 2SK37031E from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 2SK37031E?
You can download the 2SK37031E datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 2SK37031E?
ONSEMI
