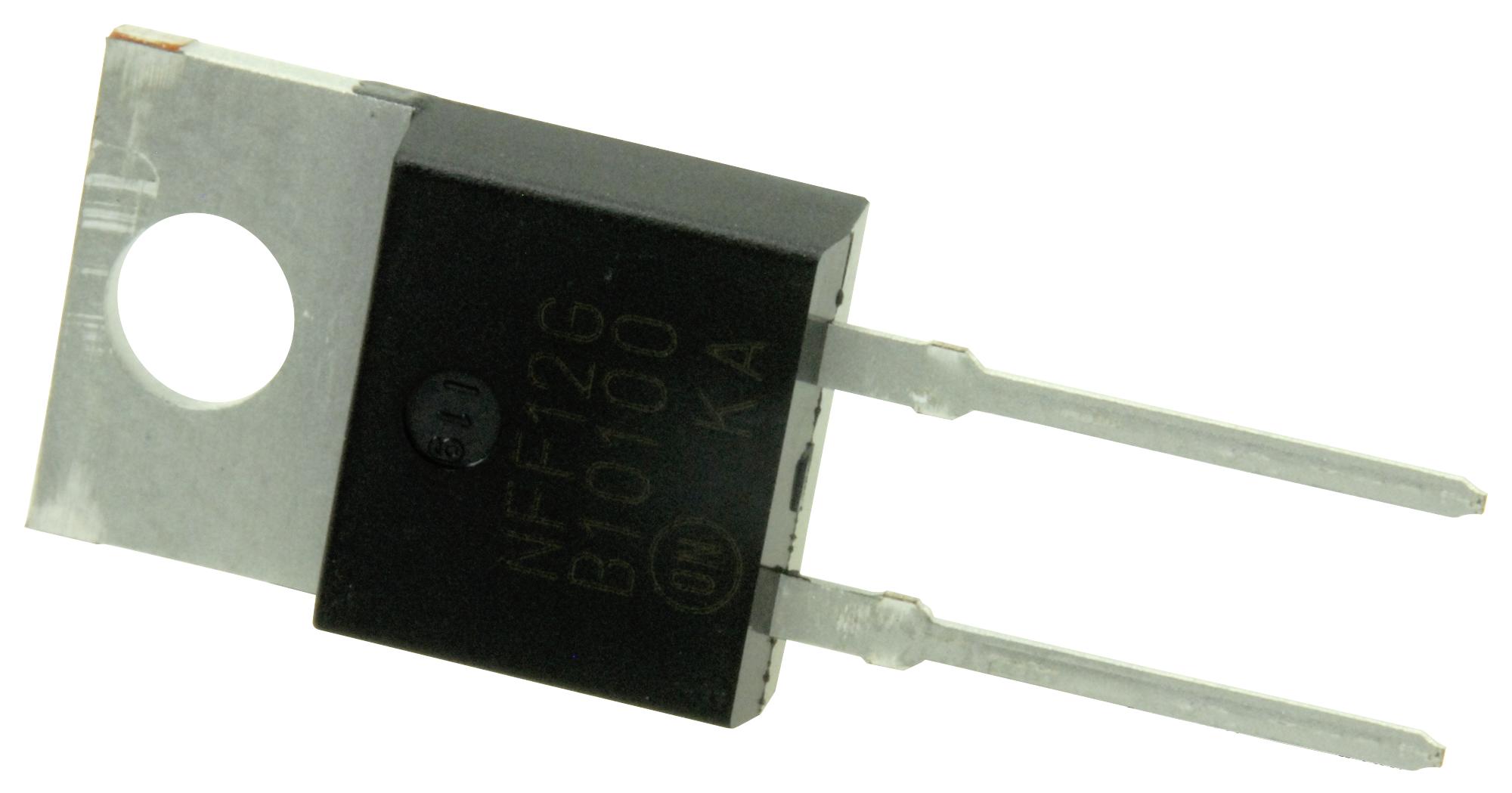

ONSEMI MBR10100G Schottky Power Rectifier
The MBR10100G is a high-reliability switch-mode Schottky power rectifier designed for power management and automotive applications. It features an epoxy molded case with corrosion-resistant surfaces, easily solderable terminal leads, and a guard ring for stress protection. Utilizing Schottky barrier technology with platinum barrier metal, it provides low forward voltage, high efficiency, and low power loss. The device supports peak repetitive reverse surge currents of 0.5A during 2.0 microseconds at 1.0 kHz, and operates safely up to 175°C junction temperature, making it ideal for high-performance, space-efficient applications where reliability is critical.
ONSEMI MBR10100G Schottky Power Rectifier Specifications:
- Peak Repetitive Reverse Voltage: 100 V
- Average Rectified Forward Current: 10 A at 133°C ambient
- Peak Repetitive Forward Current: 20 A (square wave, 20 kHz)
- Nonrepetitive Peak Surge Current: 150 A
- Operating Junction Temperature: -55°C to +175°C
- Storage Temperature: -55°C to +175°C
- Voltage Rate of Change: 10,000 V/µs
- Thermal Resistance, Junction-to-Case: 2.0°C/W
- Thermal Resistance, Junction-to-Ambient: 60°C/W
- Instantaneous Forward Voltage: 0.85 V at 20 A and 125°C
- Instantaneous Reverse Current: 6.0 mA at rated reverse voltage and 125°C
- Case Material: Epoxy molding compound
- Finish: Corrosion-resistant external surfaces
- Lead Soldering Temperature: Max 260°C for 10 seconds
- ESD Rating: Human Body Model = 3B, Machine Model = C
Buy the ON Semiconductor Series Power Rectifiers: MBR10100G
Purchase the ON Semiconductor MBR10100G Schottky Power Rectifier online today. This high-efficiency rectifier features corrosion-resistant epoxy housing, low forward voltage, and stress protection guard ring. Suitable for automotive and power management applications, it supports up to 10A current, with a peak reverse voltage of 100V. Its robust design ensures reliable operation at high junction temperatures up to 175°C, combined with easy soldering and certified safety features. Order now to ensure long-lasting, space-efficient power solutions for your electronic projects.
Get ON Semiconductor MBR10100G today—built for high efficiency and reliable power handling in demanding automotive and industrial environments.
