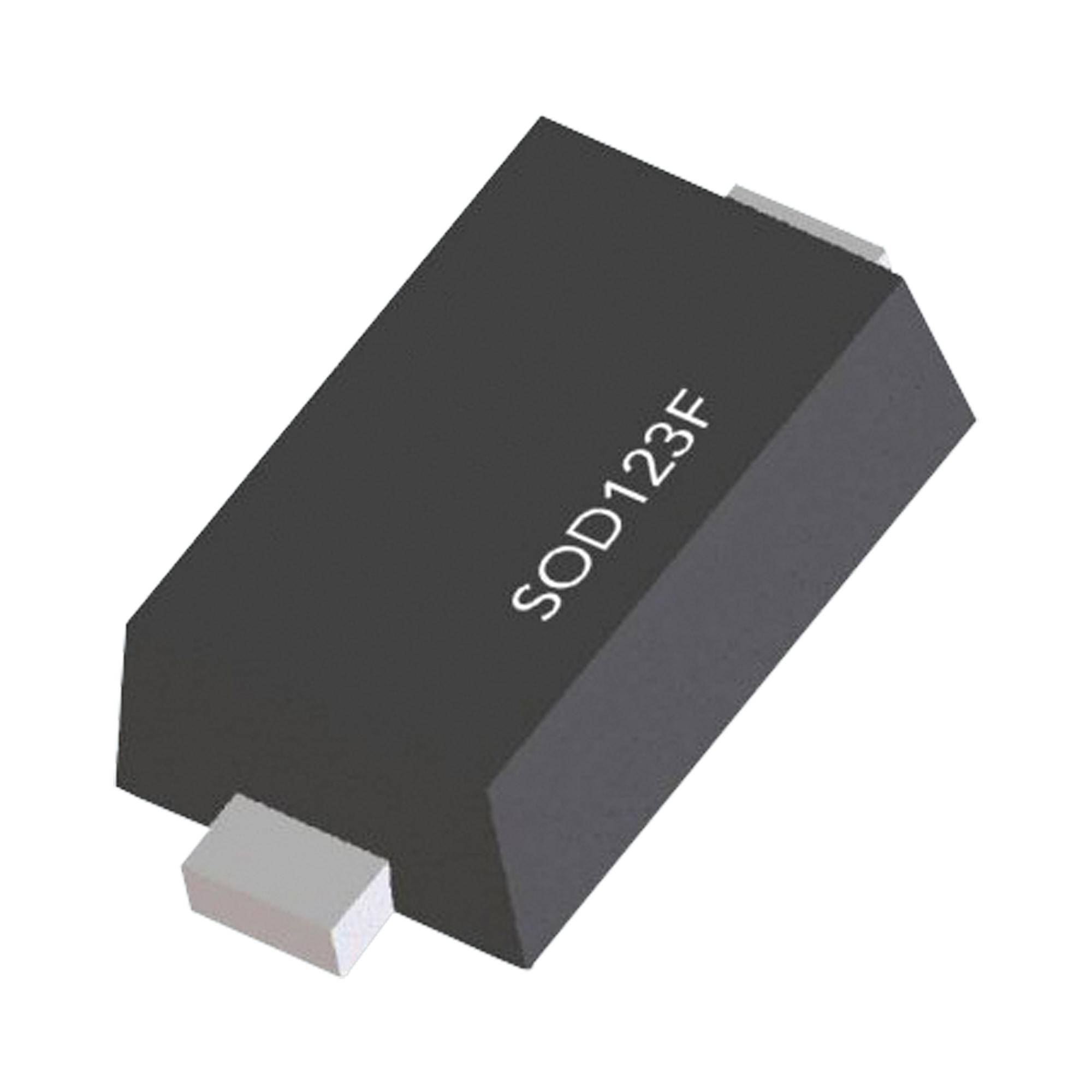

ONSEMI NRVS1BFL Surface Mount Rectifier
The NRVS1BFL is a surface-mount general-purpose rectifier with a 100 V maximum repetitive peak reverse voltage, designed for efficient and reliable circuit protection. It features ultra-thin profile at 1.08 mm height, UL 94V-0 flammability rating, and is RoHS compliant. The device operates from -55°C to +150°C, with a typical forward voltage of approximately 1.0 V at 1 A current, and a peak surge current of 30 A. Widely used in automotive and electronic applications, it offers excellent thermal and electrical characteristics for high-performance rectification.
ONSEMI NRVS1BFL Surface Mount Rectifier Specifications:
- Recurrent Peak Reverse Voltage: 100 V
- RMS Voltage: 70 V
- DC Blocking Voltage: 100 V
- Maximum Repetitive Peak Forward Current: 1 A
- Peak One Cycle Forward Surge Current: 30 A
- Operating and Storage Temperature Range: -55°C to +150°C
- Thermal Resistance Junction-to-Ambient: 140 °C/W
- Typical Forward Voltage: 1.0 V at 1 A
- Reverse Current: 1 A at V=V_R, 50 A at 125°C
- Package: SOD-123F
- UL Flammability Classification: 94V-0
- RoHS, Pb-free, Halogen free, MSL1
- Device marked with top marking code, suitable for automotive and high-reliability circuits.
Buy the Buy ON Semiconductor NRVS1BFL Part Number NRVS1BFL Online
Order the ON Semiconductor NRVS1BFL surface mount rectifier online now to ensure reliable electrical performance in your automotive, industrial, or electronic circuits. This device features a 100 V voltage rating, 1 A current capacity, ultra-thin profile at 1.08 mm height, and is RoHS compliant. Perfect for durable, high-reliability applications, it offers excellent thermal characteristics, low forward voltage, and a surge current of 30 A. Purchase today for fast delivery and proven performance in demanding environments.
Get ON Semiconductor NRVS1BFL today—built for high-efficiency rectification in automotive and industrial electronics.
Frequently Asked Questions
Where can I buy ONSEMI NRVS1BFL?
You can click on the BUY or RFQ button to purchase NRVS1BFL from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NRVS1BFL?
You can download the NRVS1BFL datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NRVS1BFL?
ONSEMI
