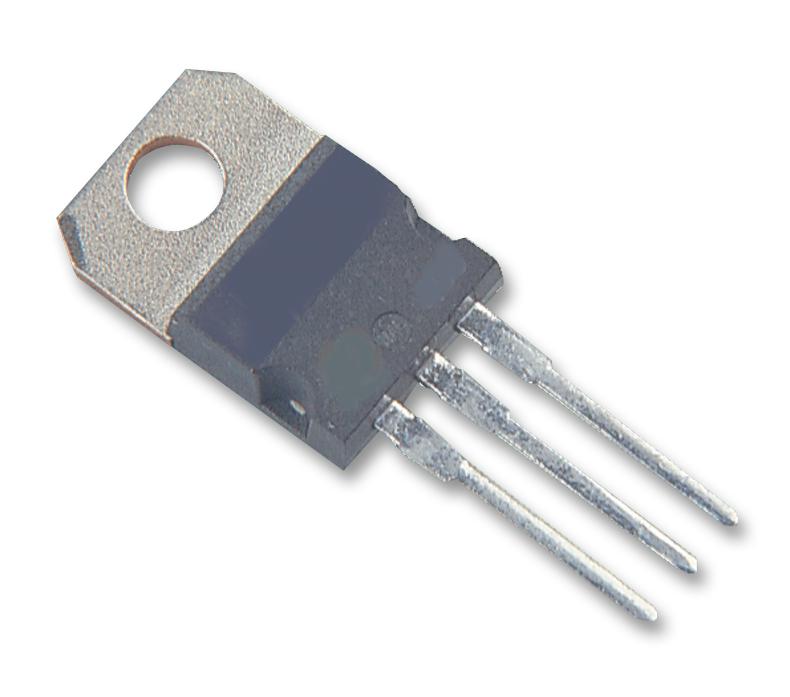

ONSEMI MBR30H100CTG Power Rectifier
The MBR30H100CTG is a high-performance switchmode Schottky barrier rectifier designed for efficient power conversion. It features a molded epoxy case with corrosion-resistant surfaces, low forward voltage of 0.67 V at 125°C, and a high surge capacity of 250 A. The device supports an operating junction temperature of up to 175°C and is rated for 100 V and 30 A, making it suitable for power supply output rectification, power management, instrumentation, and industrial applications. Its Pb-free construction ensures compliance with environmental standards, providing reliable and efficient operation in demanding environments.
ONSEMI MBR30H100CTG Power Rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 100 V
- Average Rectified Forward Current: 30 A
- Peak Repetitive Forward Current: 30 A
- Operating Junction Temperature: +175°C
- Storage Temperature Range: -65°C to +175°C
- Maximum Instantaneous Forward Voltage: 0.67 V at 15 A, 125°C
- Maximum Reverse Current: 6.0 mA at 125°C
- Peak Surge Current: 250 A at 60 Hz
- Thermal Resistance Junction-to-Case: 2.0°C/W (MBR30H100CTG)
- Thermal Resistance Junction-to-Ambient: 60°C/W (MBR30H100CTG)
- Package Type: TO-220 Epoxy Molded
- Flammability: UL 94V-0
- Lead Soldering Temperature: Max 260°C for 10 seconds
- ESD Rating: Human Body Model > 8000 V, Machine Model > 400 V
Buy the ON Semiconductor Series Power Rectifier: MBR30H100CTG
Enhance your power circuitry with the MBR30H100CTG power rectifier from ON Semiconductor. Offering 100 V and 30 A ratings, low forward voltage of 0.67 V at 125°C, and high surge capacity, this device ensures reliable, efficient operation in power supply, instrumentation, and industrial applications. The molded epoxy case provides excellent protection against corrosion, while its Pb-free construction meets environmental standards. Designed for high-temperature environments up to 175°C, this rectifier delivers maximum performance and durability in demanding electrical systems.
Order your ON Semiconductor Series Power Rectifier MBR30H100CTG today and give your power management projects the dependable high-efficiency performance they deserve.
Frequently Asked Questions
Where can I buy ONSEMI MBR30H100CTG?
You can click on the BUY or RFQ button to purchase MBR30H100CTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MBR30H100CTG?
You can download the MBR30H100CTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MBR30H100CTG?
ONSEMI
