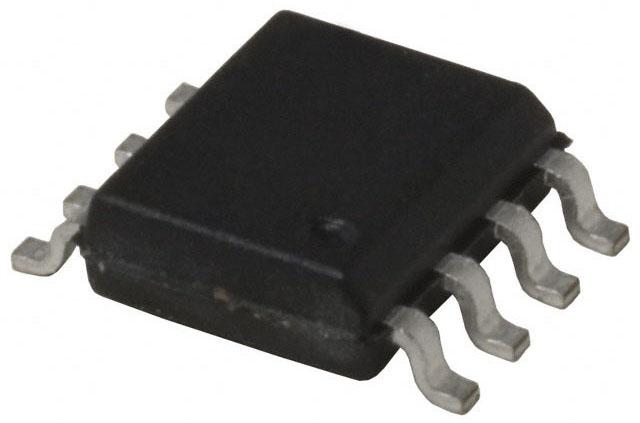

ONSEMI MC10EL32DG High-Speed Clock Divider
The MC10EL/100EL32 is an integrated +2 divider designed for high-speed clock applications. It features differential clock inputs, an internal voltage supply Vpp, and supports PECL and NECL modes for versatile system integration. Equipped with asynchronous reset, it exhibits 510 ps propagation delay, supporting toggle frequencies up to 3.0 GHz. The device is RoHS compliant, Pb-Free, halogen-free, and has robust ESD protection, moisture sensitivity level 1 for SOIC-8 packages, making it ideal for high-performance, reliable data distribution in advanced electronics and communication systems.
ONSEMI MC10EL32DG High-Speed Clock Divider Specifications:
- Propagation Delay: 510 ps
- Toggle Frequency: 3.0 GHz
- ESD Protection: >1kV Human Body Model, >100 V Machine Model
- Operating Range PECL: Voc = 4.2 V to 5.7 V, Veg = 0V
- Operating Range NECL: Voc = 0V, Vez = -4.2 V to -5.7 V
- Output Voltage High: 3920-4190 mV (typical)
- Output Voltage Low: 3050-3405 mV (typical)
- Supply Voltage: Vcc = 5 V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -65°C to +150°C
- Package: SOIC-8 NB
- Maximum Output Current: 50 mA continuous
- Thermal Resistance Junction-to-Ambient: 190°C/W (board mounted)
- Moisture Sensitivity Level: 1
- Compliance: RoHS, Pb-Free, Halogen-free
Buy the ON Semiconductor MC10EL32 U– Reliable High-Speed Clock Divider for Industrial Applications
Enhance your high-speed digital systems with the reliable MC10EL32 clock divider from ON Semiconductor. With advanced PECL and NECL modes, 3 GHz toggle frequency, and low propagation delay of 510 ps, this device ensures precise timing and stability. Ideal for high-performance communication and computing equipment, it features robust ESD protection and RoHS compliance. Bow your system's clock management to the next level by purchasing online today. Ensure your electronic projects benefit from this top-tier, durable, and easy-to-integrate clock distribution solution.
Buy ON Semiconductor MC10EL32 now and experience unmatched reliability and high-frequency performance for complex clock distribution in industrial systems.
Frequently Asked Questions
Where can I buy ONSEMI MC10EL32DG?
You can click on the BUY or RFQ button to purchase MC10EL32DG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC10EL32DG?
You can download the MC10EL32DG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC10EL32DG?
ONSEMI
