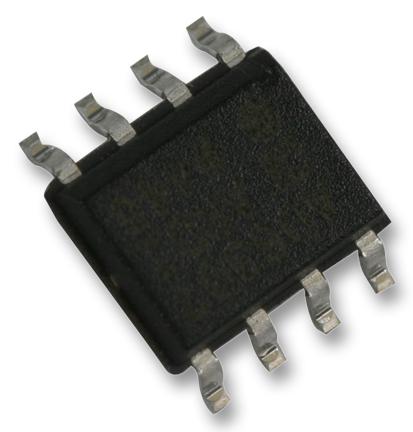

ONSEMI MC10EL52DG Differential Data Flip-Flop
The MC10EL/100ELS2 series features high-performance differential data and clock D flip-flops with reset, ideal for high-speed digital applications requiring fast propagation delays of approximately 365 ps and toggle frequencies up to 2.0 GHz. Designed to operate in PECL and NECL modes, these devices offer ESD protection (> 1 kV) and internal input pulldown resistors, ensuring stability even under open input conditions. Packaging options include SOIC-8, TSSOP-8, and DFN8, with a wide operating temperature range of -40°C to +85°C, making them suitable for advanced communication and computing systems requiring precise timing and low jitter performance.
ONSEMI MC10EL52DG Differential Data Flip-Flop Specifications:
- Propagation Delay: 365 ps
- Toggle Frequency: 2.0 GHz
- Operating Voltage: PECL Vcc = 4.2 V to 5.7 V; NECL Vcc = 0 V
- Input Voltage Range: -3.4 V to +3.4 V (differential)
- Output Voltage: HIGH > 3920 mV (PECL), HIGH > -1005 mV (NECL); LOW < 3050 mV (PECL), LOW < -1950 mV (NECL)
- Supply Current: 24-25 mA at 25°C
- Temperature Range: -40°C to +85°C
- ESD Protection: > 1 kV
- Package Types: SOIC-8, TSSOP-8, DFN8
- Pin Count: 8
- Thermal Resistance (Junction-to-Ambient): SOIC-8 (190°C/W), TSSOP-8 (185°C/W), DFN8 (35–40°C/W)
Buy the ON Semiconductor MC10EL52 – Reliable Differential Data Flip-Flop for Industrial Applications
Secure your ON Semiconductor MC10EL52 differential data flip-flop now to ensure high-speed, low jitter signal timing in your critical digital systems. Featuring propagation delays of approximately 365 ps and toggle frequencies up to 2.0 GHz, this device guarantees optimal performance in communication, computing, and industrial applications. Available in various surface-mount packages like SOIC-8, TSSOP-8, and DFN8, it offers excellent thermal characteristics and ESD protection. Purchase online today for fast delivery and reliable operation in demanding environments.
Order your ON Semiconductor MC10EL52 series differential flip-flop today and enhance your high-speed digital designs with precision timing and robust performance.
Frequently Asked Questions
Where can I buy ONSEMI MC10EL52DG?
You can click on the BUY or RFQ button to purchase MC10EL52DG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC10EL52DG?
You can download the MC10EL52DG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC10EL52DG?
ONSEMI
