ONSEMI MC33074ADR2G Quad Op Amp
The MC33074ADR2G is a quad operational amplifier with a gain bandwidth of 4.5 MHz, slew rate of 13 V/μs, and fast settling times suitable for precision and high-speed applications. Designed for single supply operation from 3.0 V to 44 V, it includes a wide input voltage range that encompasses ground potential, making it ideal for automotive, sensing, instrumentation, and industrial control without the need for JFET technology. Its all NPN output stage ensures no crossover distortion, high capacitance drive up to 10,000 pF, large output swing, and robust performance with excellent phase margin and low harmonic distortion. Features include low input offset voltage (max 3 mV), output short-circuit protection, and various package options. It is well-suited for automation, process control, sensor amplifiers, and industrial instrumentation, offering high reliability and excellent high-frequency performance in demanding applications.
ONSEMI MC33074ADR2G Quad Op Amp Specifications:
- Gain Bandwidth Product: 4.5 MHz
- Slew Rate: 13 V/μs
- Input Offset Voltage: Max 3 mV
- Input Voltage Range: Includes ground, up to 44 V differential
- Output Voltage Swing: -14.7 V to +14 V (with +15 V supplies)
- Output Drive Capability: Up to 10,000 pF capacitive load
- Package Options: PDIP-14, SOIC-14, TSSOP-14, WQFN-10
- Temperature Range: -40°C to +85°C (industrial)
- Power Supply Voltage: 3.0 V to 44 V
- Total Harmonic Distortion: 0.02%
- Gain Margin: 12 dB
- Phase Margin: 60°
- Output Short Circuit Protection
- Large Output Voltage Swing: Approaching rails
- No crossover distortion due to all NPN design
- Designed for high-frequency applications such as sensors, instrumentation, automation, and industrial electronics

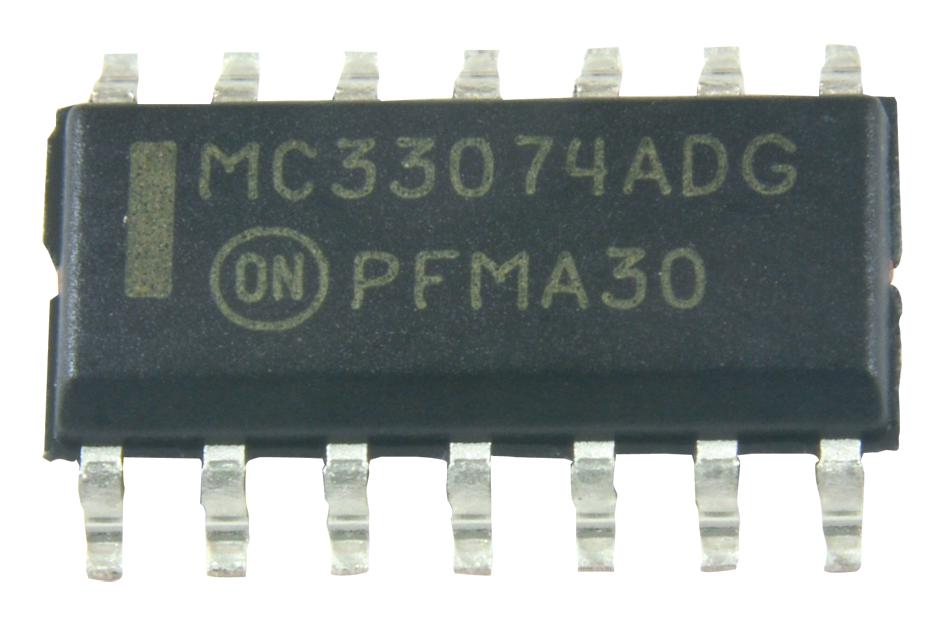

Buy the Buy ON Semiconductor Quad Operational Amplifier Part Number MC33074ADR2G Online
Buy the MC33074ADR2G quad operational amplifier online today to get high bandwidth and fast settling performance suitable for automotive, instrumentation, automation, and industrial control applications. Featuring a gain bandwidth of 4.5 MHz, slew rate of 13 V/μs, and low input offset voltage, it provides excellent high-frequency response and large output swing. Its surface-mount options enhance ease of integration in compact, high-performance designs. Trust this device for reliable operation in demanding environments, offering low harmonic distortion, short-circuit protection, and ensures high fidelity in precision sensing, control systems, and industrial automation.
Order your ON Semiconductor MC33074ADR2G quad operational amplifier today and enhance your high-speed, high-precision systems with reliable performance.
Frequently Asked Questions
Where can I buy ONSEMI MC33074ADR2G?
You can click on the BUY or RFQ button to purchase MC33074ADR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC33074ADR2G?
You can download the MC33074ADR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC33074ADR2G?
ONSEMI
