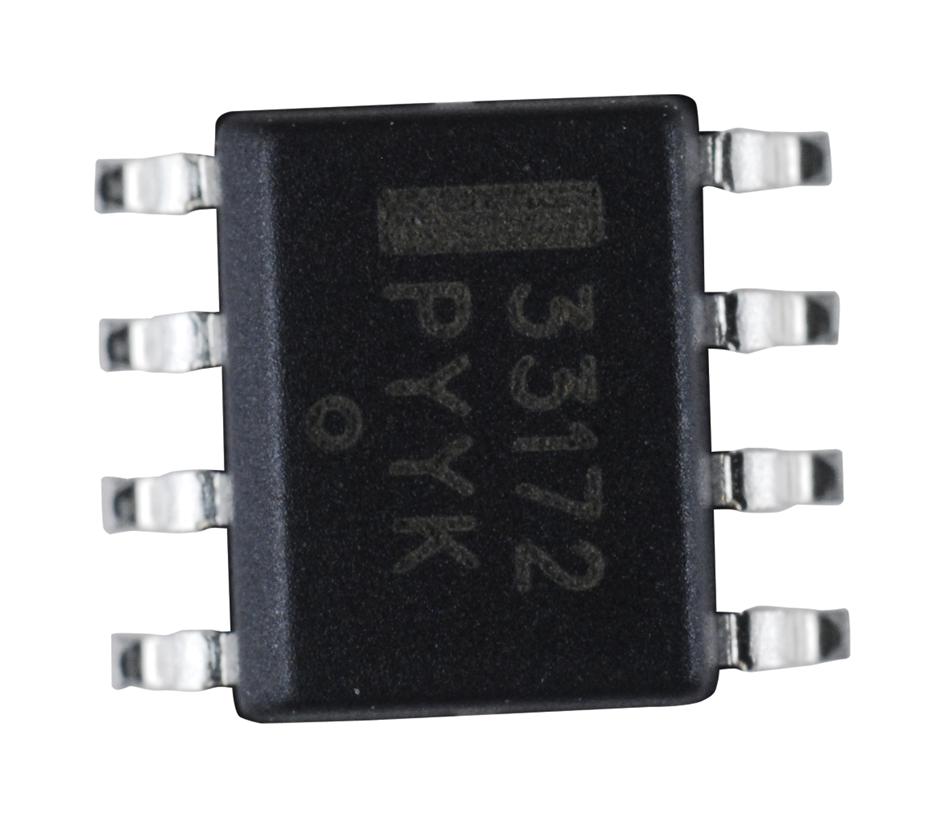

ONSEMI MC33172DR2G Dual Low-Powered Operational Amplifier
The MC33172DR2G is a low-power monolithic dual operational amplifier that operates at approximately 180µA per amplifier. It offers a gain bandwidth product of 1.8MHz and a slew rate of 2.1V/µs, all without using JFET technology. The device is well-suited for single supply operation, as its common-mode input voltage includes ground potential (VEE). Equipped with a Darlington input stage, it exhibits high input resistance, low input offset voltage of around 2mV, and high gain. The all-NPN output stage ensures no crossover distortion, large output voltage swing, high capacitance drive capability up to 500pF, and maintains excellent phase (60°) and gain (15dB) margins. Its design provides low output impedance at high frequencies, making it suitable for industrial and automotive applications. Additional features include output short-circuit protection, low total harmonic distortion (0.03%), and a wide input common mode range including ground.
ONSEMI MC33172DR2G Dual Low-Powered Operational Amplifier Specifications:
- Power Consumption: approximately 180µA per amplifier
- Gain Bandwidth Product: 1.8 MHz
- Slew Rate: 2.1 V/µs
- Input Offset Voltage: about 2 mV
- Input Resistance: high due to Darlington input stage
- Output Voltage Swing: large, up to ±14.2 V at ±15 V supplies
- Output Drive Capability: up to 500 pF
- Input Common Mode Range: includes ground potential
- Total Harmonic Distortion: 0.03%
- Phase Margin: 60°
- Gain Margin: 15 dB
- Output Impedance: low at high frequencies (~200Ω at 1 MHz)
- Package Types Available: SO-8, PDIP, TSSOP-14
- Operating Temperature Range: -40°C to +125°C depending on version
- Protection Features: output short-circuit protection, ESD diodes
- Compliance: Pb-Free, RoHS, Halogen and BFR Free
Buy the On Semiconductor Series Dual Low-Power Op Amp: MC33172
Buy the On Semiconductor MC33172DR2G dual operational amplifier online today. Designed for low power consumption, high bandwidth of 1.8MHz, and a slew rate of 2.1V/µs, this device provides excellent performance in industrial, automotive, and measurement systems. It features a wide input voltage range including ground, low input offset voltage around 2mV, large output swing up to ±14.2V with ±15V supplies, and low total harmonic distortion of 0.03%. Its compact packages and robust protection make it ideal for demanding electronic applications requiring precision and reliability.
Get On Semiconductor MC33172DR2G today—optimized for low power consumption, high bandwidth, and durability for industrial and automotive electronics.
Frequently Asked Questions
Where can I buy ONSEMI MC33172DR2G?
You can click on the BUY or RFQ button to purchase MC33172DR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC33172DR2G?
You can download the MC33172DR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC33172DR2G?
ONSEMI
