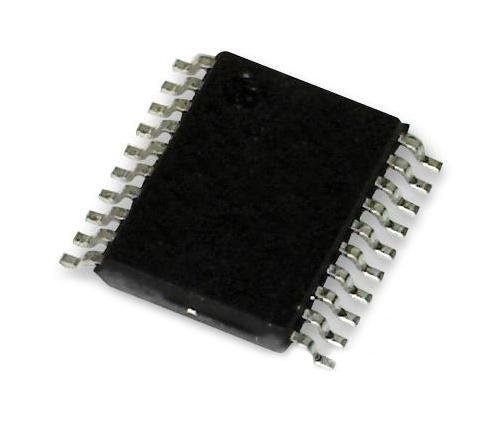

ONSEMI MC74HC574ADTR2G octal flip-flop
The MC74HC574A is an octal 3-State Noninverting D Flip-Flop designed with high-performance silicon—gate CMOS technology. It features edge-triggered operation with data stored on the rising clock edge, and outputs can be placed in a high-impedance state via Output Enable control. Compatible with standard CMOS outputs and capable of interfacing directly with TTL and NMOS logic, this device operates over 2.0 to 6.0 V. Its low input current, high drive capability, and automotive-grade qualification make it suitable for various digital switching applications and embedded systems requiring reliable data storage and transfer.
ONSEMI MC74HC574ADTR2G octal flip-flop Specifications:
- Operating Voltage Range: 2.0 to 6.0 V
- Output Drive Capability: 15 LSTTL Loads
- Low Input Current: 1.0 μA
- Maximum Clock Frequency at 50% duty cycle: 4.0 MHz
- Propagation Delay from Clock to Q: up to 240 ns
- Maximum Power Dissipation: 5.0 W
- Junction Temperature under Bias: +150°C
- Storage Temperature Range: -65°C to +150°C
- Package Types: SOIC-20, TSSOP-20, SOEIAJ-20
- Pb-Free and ROHS Compliant, AEC-Q100 qualified for automotive applications
Buy the onsemi Series HC Series Digital Storage: MC74HC574ADTR2G
Order the onsemi MC74HC574ADTR2G online today to ensure high-quality digital logic switching with low power consumption and automotive-grade reliability. Ideal for embedded systems requiring precise data storage, this octal noninverting flip-flop offers robust performance with a wide voltage range of 2.0 to 6.0 volts, high drive capability, and compatibility with TTL and CMOS outputs. Its high-impedance outputs and edge-triggered operation make it suitable for critical data transfer applications, delivering dependable operation in various industrial and automotive electronic devices.
Buy onsemi MC74HC574ADTR2G now and experience unmatched reliability and performance in digital storage and logic switching systems.
Frequently Asked Questions
Where can I buy ONSEMI MC74HC574ADTR2G?
You can click on the BUY or RFQ button to purchase MC74HC574ADTR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74HC574ADTR2G?
You can download the MC74HC574ADTR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74HC574ADTR2G?
ONSEMI
