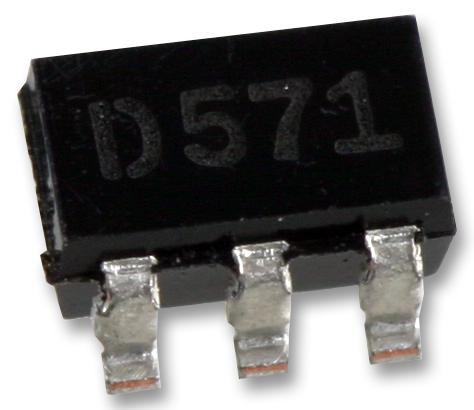

ONSEMI SMS15CT1G Five-line TVS array
The SMS15CT1G is a high-performance five-line transient voltage suppressor array designed for protecting sensitive electronic circuits from voltage transients and electrostatic discharge. It features a monolithic common anode architecture that safeguards five independent lines within a compact TSOP-6 package. Rated for a peak power dissipation of 350W, it exceeds standard ESD immunity levels with ratings over 8kV (HBM) and 400V (MM). Suitable for automotive, networking, and communication applications, it ensures reliable transient suppression with compliance to IEC 61000-4-2 standards, operating from -40°C to 150°C.
ONSEMI SMS15CT1G Five-line TVS array Specifications:
- Peak Power Dissipation: 350 W (8 x 20 us waveform)
- ESD Rating: >8.0 kV (Human Body Model), >400 V (Machine Model)
- Reverse Working Voltage: 15 V
- Breakdown Voltage: 17-19 V
- Reverse Leakage Current: 0.05-1.0 A
- Clamping Voltage at 5A: 24 V
- Capacitance: 95-125 pF (Line to GND)
- Operating Temperature Range: -40°C to 150°C
- Package: TSOP-6, Lead Solder Temperature: 260°C for 10 s
- Compliance: IEC 61000-4-2 ESD immunity 15kV air, 8kV contact
- Flammability Rating: UL94 V-0
- Pb-Free: Yes
Buy the Buy ON Semiconductor SMS15CT1G Part Number SMS15CT1G Online
Secure your electronic devices with the ON Semiconductor SMS15CT1G five-line transient voltage suppressor array. Designed for high power dissipation and superior ESD protection, it safeguards circuits against voltage surges and electrostatic discharge. Perfect for automotive, communication, and networking applications, this compact TSOP-6 package offers reliable protection with IEC 61000-4-2 compliance, and operates efficiently from -40°C to 150°C. Ensure durability and safety for your sensitive electronics by purchasing this proven, Pb-Free device online today.
Buy ON Semiconductor SMS15CT1G now and experience unmatched reliability and superior transient voltage suppression for sensitive electronics.
