ONSEMI MC74LVX4245DTR2G Octal Level Translator
The MC74LVX4245 is a dual-supply, octal translating transceiver designed for bidirectional level shifting between 3.0 V and 5.0 V buses, ideal for mixed voltage applications like notebook computers. It features control inputs compatible with TTL levels, source/sink outputs at 24 mA (5.0 V) and 12 mA (3.0 V), and supports both unidirectional and bidirectional data flow. Available in SOIC and TSSOP packages, the device ensures reliable performance with low power consumption and is AEC-Q100 qualified for automotive use, making it suitable for complex system interfaces.
ONSEMI MC74LVX4245DTR2G Octal Level Translator Specifications:
- Vcca Range: 4.5 V to 5.5 V
- Vce Range: 2.7 V to 3.6 V
- Output Current: Source/Sink 24 mA at 5.0 V, 12 mA at 3.0 V
- Input Voltage Range: 0 V to Vcc
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -65°C to +150°C
- Logic Family: 74LVX
- Package Options: SOIC-24, TSSOP-24
- Propagation Delay: 1.0 to 10.0 ns
- Power Dissipation Capacitance: 55 pF
- Capacitance Input: 45 pF
- Input Voltage Tolerance: -0.5 V to Vcc + 0.5 V
- RoHS Compliant, Pb-Free, Halogen Free

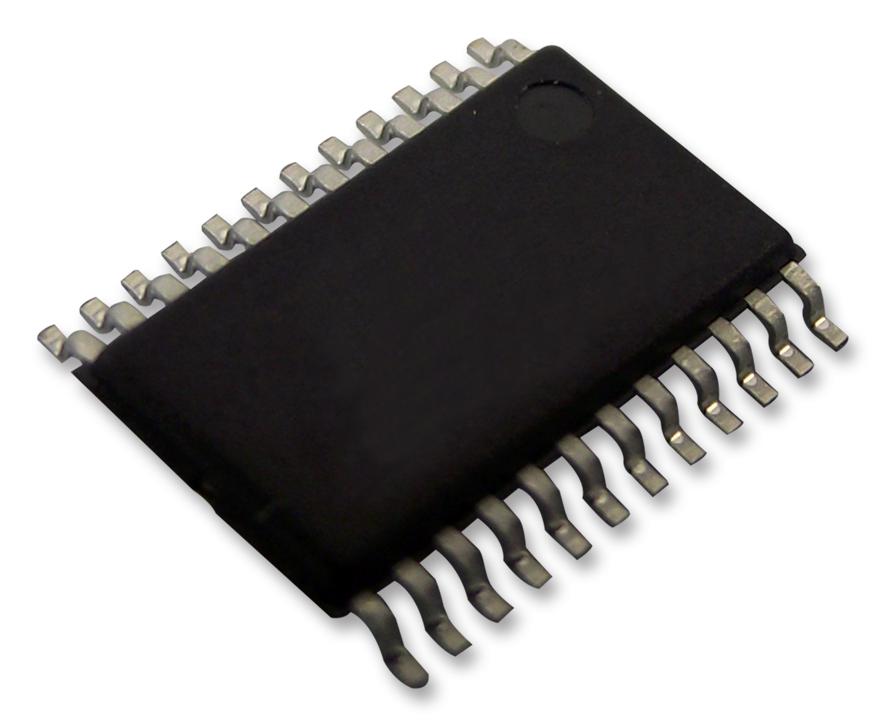

Buy the onsemi Series LVX MC74LVX4245: Dual Supply Octal Translating Transceiver
Purchase the onsemi MC74LVX4245 dual-supply octal translating transceiver online today to ensure seamless bidirectional data communication between 3.0 V and 5.0 V systems. Designed for reliable performance in mixed voltage environments, its compact SOIC and TSSOP packages simplify integration into your electronic systems. Equipped with TTL-compatible control inputs, source/sink current capacity of 24 mA at 5.0 V, and 12 mA at 3.0 V, this device is optimized for high-speed, low-power applications in computing and automotive systems. Order now for quick delivery and expert support.
Buy onsemi MC74LVX4245 now and experience unmatched reliability and performance in mixed voltage system interfaces.
Frequently Asked Questions
Where can I buy ONSEMI MC74LVX4245DTR2G?
You can click on the BUY or RFQ button to purchase MC74LVX4245DTR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74LVX4245DTR2G?
You can download the MC74LVX4245DTR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74LVX4245DTR2G?
ONSEMI
