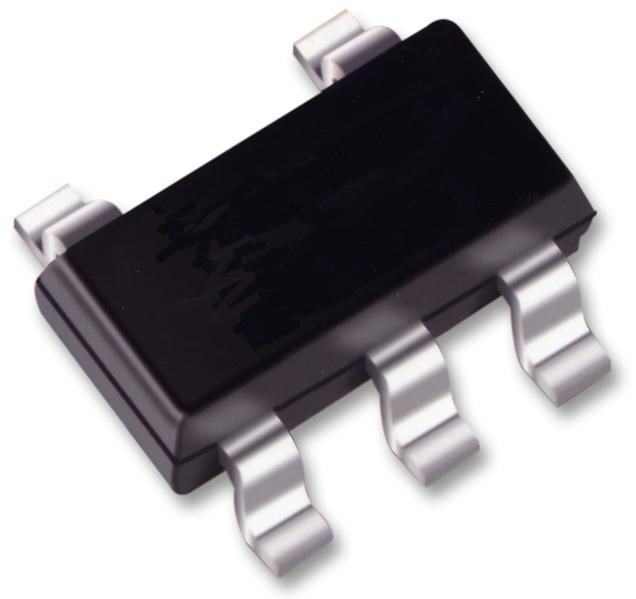

ONSEMI MC74VHC1G02DFT2G 2-Input NOR Gate
The MC74VHC1G02 is a high-speed CMOS 2-input NOR gate designed with silicon gate technology, offering high noise immunity, stable output, and low power consumption. It features an input structure that provides protection at voltages up to 7 V, making it suitable for interfacing 5 V circuits with lower voltage systems. The device is compatible with standard logic families, includes power-down protection on inputs, and has balanced propagation delays, making it ideal for various digital logic applications.
ONSEMI MC74VHC1G02DFT2G 2-Input NOR Gate Specifications:
- DC Supply Voltage: 0.5 to +7.0 V
- Input Voltage: 0.5 to +7.0 V
- Output Voltage: 0 to +7.0 V
- High or Low State: -0.5 to +0.5 V
- Input Diode Current: -20 mA
- Output Diode Current: ±20 mA
- DC Output Current per Pin: ±25 mA
- Power Dissipation in Still Air at 85°C: 150 mW (SC70-5/SC-88A), 200 mW (TSOP-5)
- Thermal Resistance: 350°C/W (SC70-5/SC-88A), 230°C/W (TSOP-5)
- Junction Temperature: +150°C
- Storage Temperature Range: -65°C to +150°C
- ESD Withstand Voltage: >2000 V (Human Body Model)
- Max Propagation Delay: 3 ns at Vcc=5 V
- Input Rise and Fall Time: 0-100 ns at Vcc=3.3 V
- Capacitance: 10 pF maximum at input, 1 pF internal power dissipation cap
