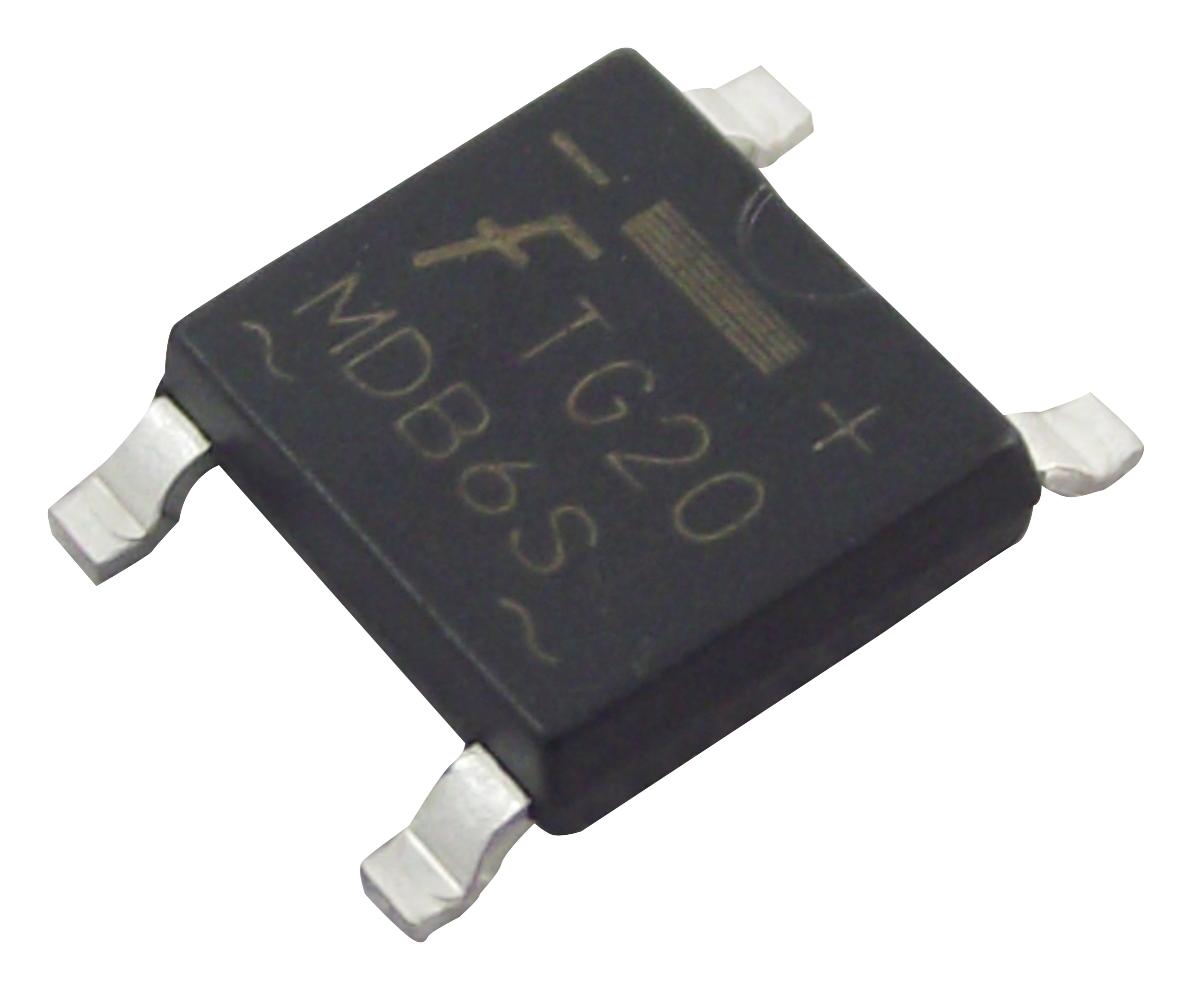

ONSEMI MDB6S Micro DIP Bridge Rectifier
The MDB6S is a low-profile single-phase bridge rectifier designed for compact power supply applications. With a maximum height of just 1.6 mm and a small 35 mm² footprint, it offers high efficiency and reliable operation. Rated for surge currents up to 30 A and voltages up to 1000 V, its glass-passivated junctions ensure longevity. It’s RoHS compliant, halogen-free, and UL certified, making it suitable for various industrial and electronic power systems requiring efficient and space-saving rectification in a micro-DIP package.
ONSEMI MDB6S Micro DIP Bridge Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage: 600 V (MDB6S), 800 V (MDB8S), 1000 V (MDB10S)
- Maximum RMS Voltage: 420 V (MDB6S), 560 V (MDB8S), 700 V (MDB10S)
- Average Rectified Forward Current: 1.0 A
- Peak Forward Surge Current: 30 A
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Forward Voltage: 1.165 V at 5 A, 0.935 V at 1 A (typical)
- Maximum DC Blocking Voltage: 600 V (MDB6S), 800 V (MDB8S), 1000 V (MDB10S)
- Thermal Resistance Junction-Ambient: 250 °C/W (dual die), 150 °C/W (single die)
- Device mounted on FR-4 PCB, measured at Tj = 25°C
