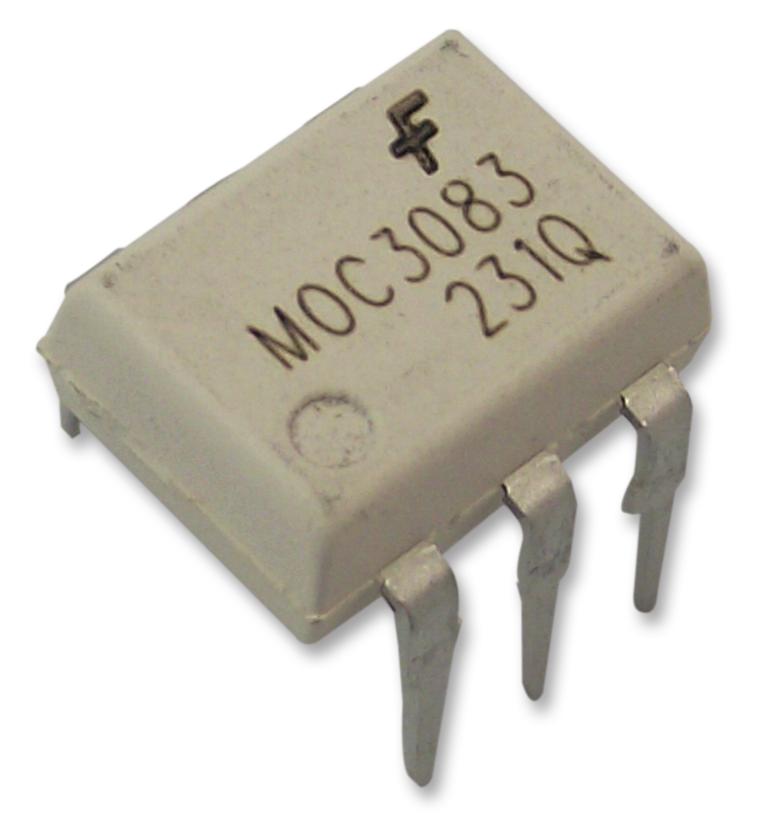

ONSEMI MOC3083M Triac Driver Optocoupler
The MOC3083M is a 6-pin DIP zero-cross triac driver optocoupler designed for simplifying AC power control with enhanced static dv/dt and 800 V peak blocking voltage. It features infrared LED and silicon detector for efficient isolation, suitable for solenoid, lighting, motor starters, and solid-state relays, with UL1577 and IEC 60747-5-5 certification ensuring safety. The device operates with a maximum collector current of 60 mA, an operating temperature range of -40°C to +85°C, and insulation resistance over 10^10 ohms, providing reliable performance in industrial applications.
ONSEMI MOC3083M Triac Driver Optocoupler Specifications:
- Peak Blocking Voltage: 800 V
- Max Collector Current: 60 mA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +150°C
- Isolation Resistance: >10^10 ohms
- Insulation Voltage (VISO): 4170 VAC
- Max Power Dissipation (Device): 250 mW at 25°C
- Input Forward Voltage: 1.3 to 1.5 V
- Input Reverse Voltage: 6 V
- Peak Surge Current (I_rsm): 1 A
- dv/dt: 1500 V/μs guaranteed
- Certifications: UL1577, IEC 60747-5-5
Buy the Buy ON Semiconductor MOC3083M Part Number MOC3083M Online
Purchase the ON Semiconductor MOC3083M triac driver optocoupler online today to benefit from a high-performance, safety-certified component ideal for industrial automation, lighting, motor starters, and power relay applications. This 6-pin DIP device features an 800 V peak blocking voltage, high isolation resistance, and excellent dv/dt characteristics, ensuring safety and reliable operation in demanding environments. Available for quick shipping, this optocoupler guarantees efficient, noise-free control for your AC power switching needs.
Order your ON Semiconductor MOC3083M triac driver optocoupler today and enhance your AC power control projects with reliable, safety-certified performance.
Frequently Asked Questions
Where can I buy ONSEMI MOC3083M?
You can click on the BUY or RFQ button to purchase MOC3083M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3083M?
You can download the MOC3083M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3083M?
ONSEMI
