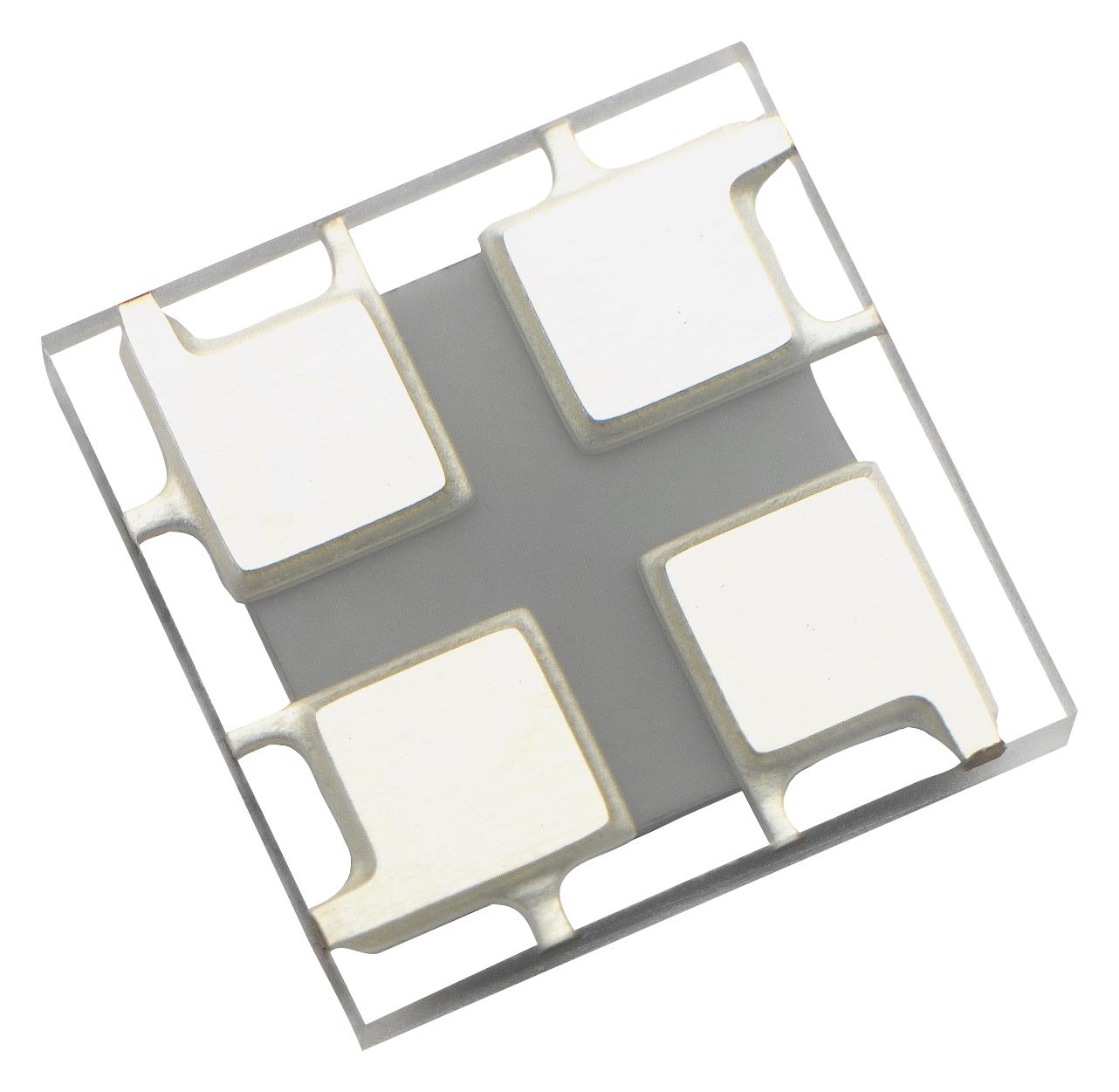

ONSEMI MICROFC30035SMTTR1 Silicon Photomultiplier Sensor
The C-Series low-light sensors from ON Semiconductor feature an industry-leading low dark-count rate and high photon detection efficiency. Designed for ultrafast timing applications, these sensors provide a fast output with a rise time of approximately 300 ps and a pulse width of about 600 ps. The sensors are available in various sizes, including 1 mm, 3 mm, and 6 mm, and are packaged in a four-side tileable surface-mount (SMT) package compatible with standard lead-free reflow soldering processes. An SiPM consists of hundreds or thousands of microcells, each acting as an avalanche photodiode with an individual quench resistor and a capacitively coupled fast output, arranged in a close-packed array.
ONSEMI MICROFC30035SMTTR1 Silicon Photomultiplier Sensor Specifications:
- Active Areas: 1x1 mm², 3x3 mm², 6x6 mm²
- Microcell Count: 2880, 10998, 18980
- Package Dimensions: 1.5x1.8 mm², 4x4 mm², 7x7 mm²
- Material: Clear transfer molding compound
- Encapsulant Refractive Index: 1.59 @ 420 nm
- Operating Temperature Range: 40°C to +85°C
- Maximum Storage Temperature: +105°C
- Soldering: Lead-free, reflow process compatible
- Maximum Current Levels: 6mA, 15mA, 20mA depending on size
- Gain: up to 3x10^8 at overvoltage +5.0 V
- Photon Detection Efficiency: Up to approximately 35% at 420 nm
- Rise Time (Fast Output): 0.3 ns
- Pulse Width (FWHM): 0.6 ns
- Dark Count Rate: Up to 3400 kHz/mm² for 6 mm sensors
- Microcell Fill Factor: 28% to 64% depending on size
Buy the ON Semiconductor MICROFC30035SMT – Reliable Silicon Photomultiplier for Industrial Applications
Order the Silicon Photomultiplier sensor from ON Semiconductor today to benefit from low dark count rates, ultrafast timing, and high photon detection efficiency. Perfectly suited for industrial, scientific, and medical applications, this high-quality SiPM offers fast rise times, excellent temperature stability, and a variety of sizes to meet your specific needs. With a robust SMT package adaptable to standard reflow soldering, you can quickly incorporate this sensor into your projects and ensure dependable performance in high-precision applications.
Buy ON Semiconductor MICROFC30035SMT now and experience unmatched reliability and high-performance photon detection for scientific and industrial use.
