ONSEMI MMBD1201 Small Signal Diode
The MMBD1201 is a high conductance, ultra-fast small signal diode suitable for general applications in industrial and electronic circuitry. It operates within a storage temperature range from -55°C to 150°C and can withstand a junction temperature of up to 150°C, making it reliable for high-speed switching and rectification tasks. This diode features a maximum repetitive reverse voltage of 100 V and a forward voltage of approximately 820-920 mV at 100 mA. Its compact SOT-23 package ensures ease of installation and integration into various electronic assemblies, supporting robust circuit performance.
ONSEMI MMBD1201 Small Signal Diode Specifications:
- Maximum Repetitive Reverse Voltage: 100 V
- Average Rectified Forward Current: 200 mA
- Non-Repetitive Peak Forward Pulse Current: 1.0 A
- Storage Temperature Range: -55°C to +150°C
- Operating Junction Temperature: 150°C
- Power Dissipation: 350 mW
- Thermal Resistance, Junction-to-Ambient: 357°C/W
- Forward Voltage: 820-920 mV at 100 mA
- Reverse Current at 50 V: 50 nA
- Total Capacitance: 2.0 pF at 0 V, 1.0 MHz
- Package: SOT-23
- Maximum Peak Forward Current: 1.0 A
- Peak Reverse Voltage: 100 V
- Reverse Recovery Time: 4.0 ns

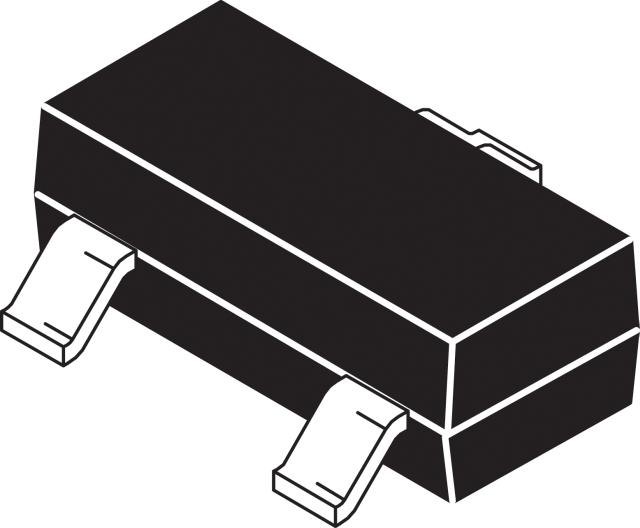

Buy the Buy FAIRCHILD MMBD1201 Small Signal Diode Part Number MMBD1201 Online
Purchase the FAIRCHILD MMBD1201 small signal diode online today and experience reliable high-speed switching and rectification. Designed for industrial and electronic circuits, it handles up to 100 V reverse voltage and operates within a wide temperature range from -55°C to 150°C. Its ultra-fast recovery time of 4.0 ns ensures efficient circuit performance, while its compact SOT-23 package facilitates easy installation in various devices. Order now to benefit from high conductance and dependable operation suitable for diverse electronic applications.
Get FAIRCHILD MMBD1201 diode today—built for high-speed switching, durability, and reliable performance in compact SOT-23 packaging.
Frequently Asked Questions
Where can I buy ONSEMI MMBD1201?
You can click on the BUY or RFQ button to purchase MMBD1201 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MMBD1201?
You can download the MMBD1201 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MMBD1201?
ONSEMI
