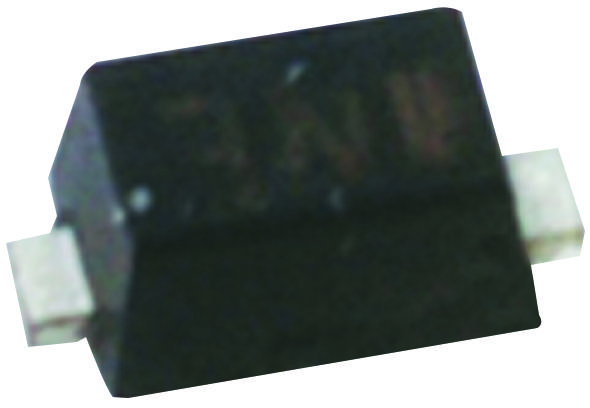

ONSEMI MM5Z2V4ST1G Zener Diode
The Zener diode series in SOD-523 surface mount packages offers 500 mW power ratings and a breakdown voltage range of 2.4 V to 18 V, ideal for voltage regulation in compact designs. Designed for applications like cellular phones, portable devices, and high-density PCBs, these devices are Pb-Free, RoHS compliant, and feature low body height of 0.028 inches with dimensions of 0.047“ x 0.032”. They meet UL 94 V-0 flammability standards and are suitable for automotive and industrial uses with high ESD ratings (> 16 kV). The series is qualified for automotive and control environments with AEC-Q101 certification.
ONSEMI MM5Z2V4ST1G Zener Diode Specifications:
- Power Rating: 500 mW
- Breakdown Voltage Range: 2.4 V to 18 V
- Body Dimensions: 0.047” x 0.032” (1.20 mm x 0.80 mm)
- Body Height: 0.028” (0.7 mm)
- ESD Rating: Class 3 (> 16 kV)
- Flammability: UL 94 V-0
- Lead Finish: Matte Sn (Tin)
- Maximum Reflow Temperature: 260°C
- Case Material: Transfer-molded, thermosetting plastic epoxy
- Mounting Position: Any
- Total Device Dissipation: 500 mW @ Ta=25°C
- Thermal Resistance: 250°C/W from junction to ambient
- Device meets MSL 1 requirements
- Designed for automotive and industrial applications, compliant with RoHS and Pb-Free standards
Buy the ON Semiconductor MM5Z2V4ST1G – Reliable Zener Voltage Regulators for Industrial Applications
Enhance your electronic designs with our reliable Zener diode series. Featuring a power rating of 500 mW and a breakdown voltage range from 2.4 V to 18 V, these surface-mount devices are perfect for voltage regulation in compact, space-constrained applications like mobile devices, portable electronics, and high-density circuit boards. They are RoHS compliant, Pb-Free, and qualified for automotive and industrial environments, offering high ESD protection (> 16 kV) and robust thermosetting plastic case construction for durability and performance. Purchase online now for dependable voltage regulation solutions.
Order your ON Semiconductor MM5Z2V4ST1G series low-profile Zener diodes today and ensure stable voltage regulation in your space-sensitive electronics projects.
Frequently Asked Questions
Where can I buy ONSEMI MM5Z2V4ST1G?
You can click on the BUY or RFQ button to purchase MM5Z2V4ST1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM5Z2V4ST1G?
You can download the MM5Z2V4ST1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM5Z2V4ST1G?
ONSEMI
