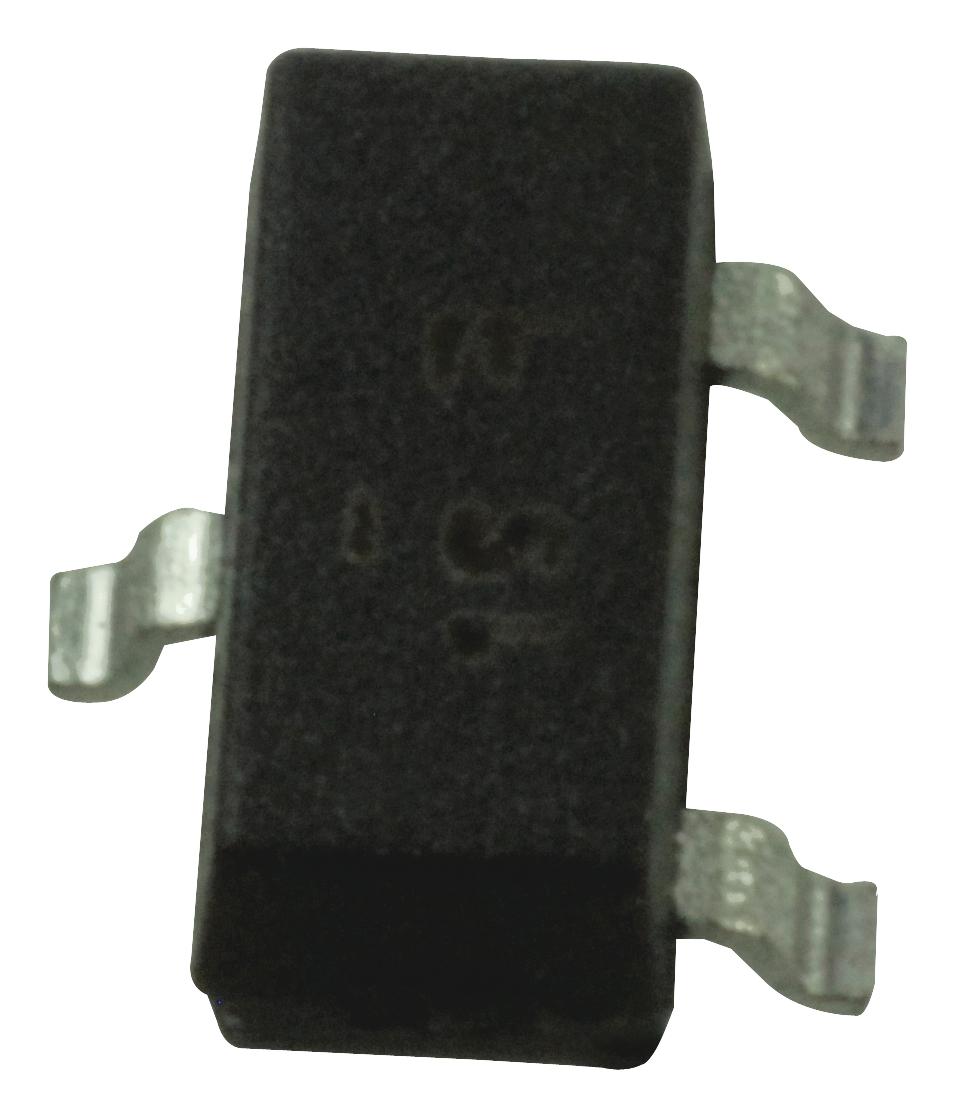

ONSEMI MMBT2369A Switching Transistor
The MMBT2369A is an NPN switching transistor designed for high-speed saturated switching with collector currents ranging from 10 to 100mA. It features a collector-emitter voltage of 15V and a collector-base voltage of 40V, making it suitable for power management, industrial applications, and automation systems. The device operates effectively within a temperature range of -55°C to 150°C, with a maximum collector current of 200mA. Its compact SOT-23 package ensures reliable performance in space-constrained environments, providing fast switching times and stable operation.
ONSEMI MMBT2369A Switching Transistor Specifications:
- Collector-Emitter Voltage: 15 V
- Collector-Base Voltage: 40 V
- Emitter-Base Voltage: 45 V
- Collector Current - Continuous: 200 mA
- Operating and Storage Junction Temperature Range: -55°C to +150°C
- Total Device Dissipation: 225 mW
- Thermal Resistance, Junction-to-Ambient: 556 °C/W
- Device mounted on FR-4 PCB (1.6 inch x 1.6 inch x 0.06 inch)
- Switching times: Turn-On time 12 ns, Turn-Off time 18 ns
- Power Dissipation: 225 mW
- Output Capacitance: 4 pF
- Input Capacitance: 5 pF
- Collector-Emitter Saturation Voltage: 0.25–0.70 V depending on collector current and base current
- Storage Time: 13 ns
