ONSEMI MM5Z4V7ST1G Zener Diode
The MM5Z4V7ST1G is a high-reliability Zener diode in a compact SOD-523 surface mount package, designed for voltage regulation and transient suppression in space-constrained electronic circuits. It features a 0.47 V Zener voltage with a maximum current of 10 mA, a steady power dissipation of 500 mW, and a low-profile body measuring 0.047" x 0.032" with a height of 0.028". The device offers an ESD rating of Class 3 (> 16 kV) and is RoHS compliant, suitable for cellular phones, portable devices, and high-density PCBs.
ONSEMI MM5Z4V7ST1G Zener Diode Specifications:
- Zener Voltage: 4.7 V
- Power Dissipation: 500 mW
- Maximum Continuous Current: 10 mA
- Dimensions: 0.047" x 0.032" (1.20 mm x 0.80 mm)
- Body Height: 0.028" (0.7 mm)
- ESD Rating: Class 3 (> 16 kV)
- Peak Repetitive Reverse Voltage: 6.8 V
- Tolerance: Tight tolerance for voltage regulation
- Operating Temperature Range: -65°C to +150°C
- Lead Finish: Matte Sn (Tin)
- Mounting Position: Any
- Qualification: AEC-Q101 qualified, PPAP capable
- Case Material: Void-free, transfer-molded thermosetting plastic, UL 94V-0
- Reflow Temperature: Max 260°C
- Compliance: RoHS, Pb-free

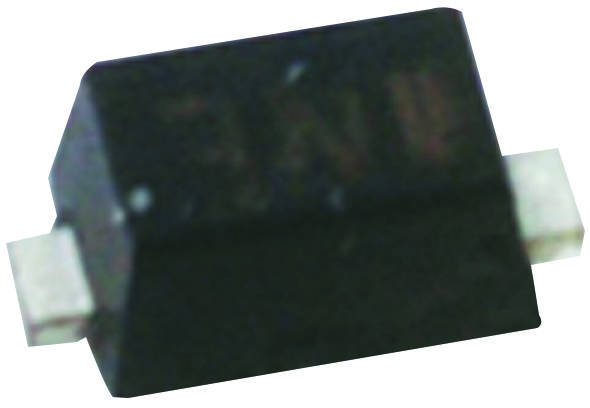

Buy the ON Semiconductor Series MM5Z4V7 Zener Voltage Regulator: MM5Z4V7ST1G
Secure your electronic projects with the ON Semiconductor Series MM5Z4V7 Zener diode, a compact, high-reliability component designed for space-constrained applications. Featuring a 4.7 V Zener voltage and 500 mW power rating, it ensures stable voltage regulation and transient suppression. Its small body size, low profile, and robust ESD rating make it ideal for portable devices and high-density PCBs. Purchase online today for dependable performance, RoHS compliance, and ease of assembly in your manufacturing process.
Order your ON Semiconductor Series MM5Z4V7 Zener diode today and strengthen your projects with reliable voltage regulation in a compact package.
Frequently Asked Questions
Where can I buy ONSEMI MM5Z4V7ST1G?
You can click on the BUY or RFQ button to purchase MM5Z4V7ST1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM5Z4V7ST1G?
You can download the MM5Z4V7ST1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM5Z4V7ST1G?
ONSEMI
