ONSEMI LV5068VTLMH Low Power Step-Down Regulator
The LV5068V is an efficient, low power consumption step-down switching regulator controller IC designed for high-efficiency power management. Features include built-in UVLO, TSD, and a built-in oscillatory frequency range of 300 kHz to 2.2 MHz. It supports synchronous driving and overcurrent protection with HICCUP operation or latch-off functions. Operating from 4.5V to 40V, it delivers up to 500mA output current, with low standby current of 1pA and optimized thermal shutdown protections, suitable for compact power supply designs.
ONSEMI LV5068VTLMH Low Power Step-Down Regulator Specifications:
- Input voltage range: 4.5V to 40V
- Maximum Input voltage: 45V
- Output current: up to 500mA
- Oscillatory frequency: 300kHz to 2.2MHz
- Reference voltage: 1.241V to 1.279V
- Operating temperature: -40°C to +85°C
- Standby current: 1pA
- Power dissipation: up to 1.074W
- Thermal shutdown: 150°C to 190°C
- Built-in UVLO and TSD functions
- Built-in overcurrent protection with HICCUP mode or latch-off
- Pin configuration includes EN, FB, COMP, RT, SYNC, and HICCUP

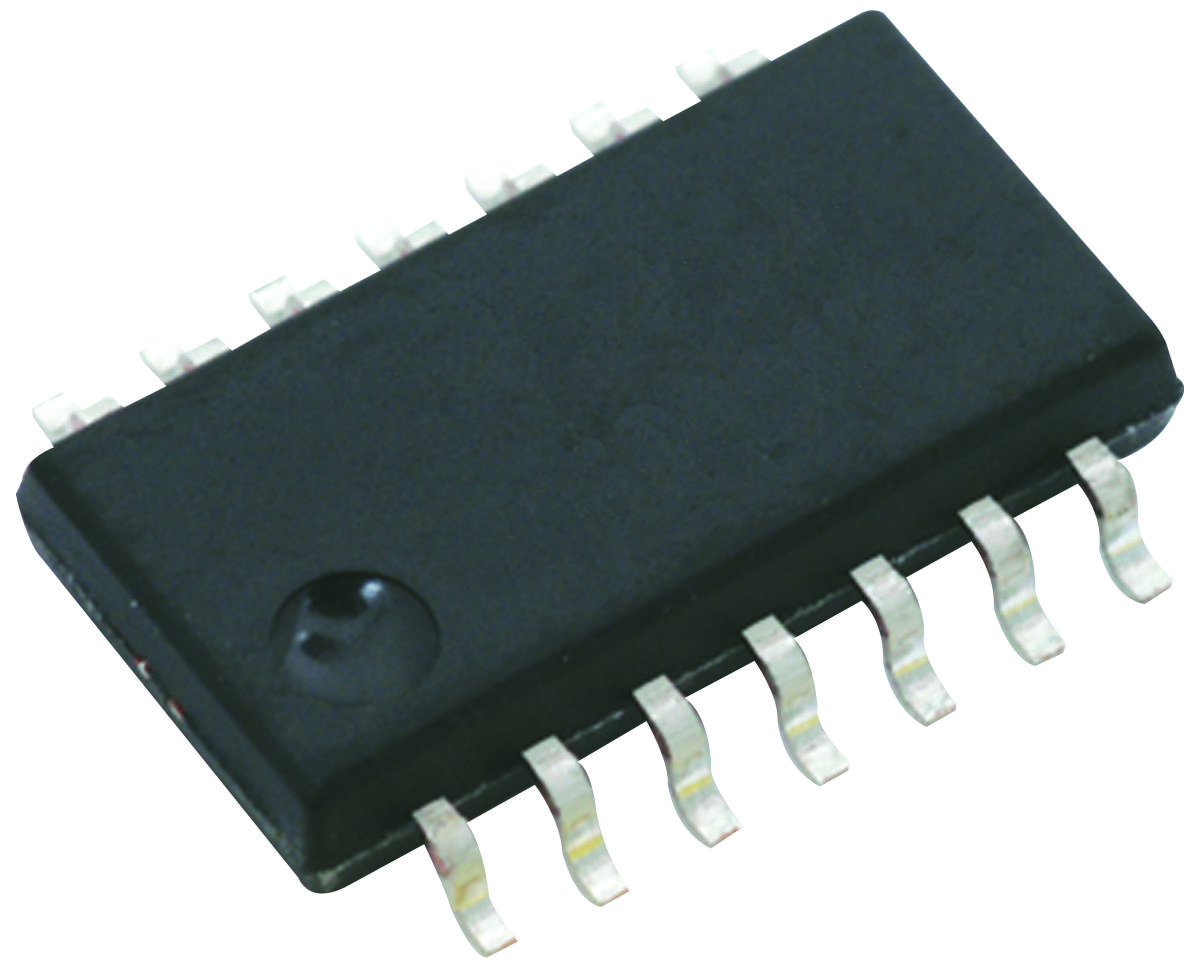

- Package: SSOP16, dimensions approx. 16.5mm x 7.7mm
- Designed for high efficiency and compact power management applications
Buy the Buy ON Semiconductor LV5068V Part Number LV5068VTLMH Online
Secure your ON Semiconductor LV5068V low power step-down regulator now. This high-efficiency IC supports adjustable frequency from 300 kHz to 2.2 MHz, features built-in UVLO and TSD protections, and delivers up to 500mA output current. Its compact SSOP16 package makes it ideal for space-constrained power supplies, offering exceptional thermal shutdown and overcurrent protection for reliable operation. Perfect for making your power systems more efficient and dependable—order online today and enhance your electronic designs.
Order your ON Semiconductor SeriesLV5068V low power step-down regulator today and ensure reliable, efficient power management for your projects.
