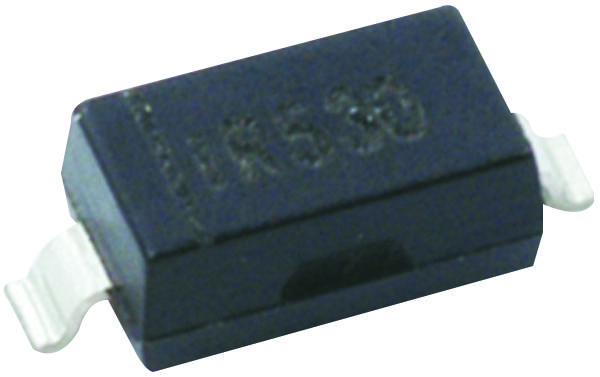

ONSEMI MMSZ4689T3G Zener Diode
These ultra-small 500 mW surface mount Zener diodes in SOD-123 packages offer a wide reverse voltage range from 1.8 V to 43 V, ideal for voltage regulation in compact electronic circuits. They feature high ESD rating (>16 kV) and are RoHS compliant, designed for automated assembly on FR-4 or FR-5 boards. With corrosion-resistant finishes and UL 94 V-0 flammability rating, these diodes ensure reliability and safety in automotive and industrial applications. Their mechanical characteristics include transfer-molded plastic cases, cathode polarity indication, and maximum soldering temperature of 260°C for 10 seconds.
ONSEMI MMSZ4689T3G Zener Diode Specifications:
- Power Dissipation: 500 mW at T=75°C
- Maximum Soldering Temperature: 260°C for 10 seconds
- Package: SOD-123, transfer-molded plastic case
- Polarity: Cathode indicated by polarity band
- Maximum Junction Temperature: +150°C
- Thermal Resistance Junction-to-Ambient: 340°C/W
- Thermal Resistance Junction-to-Lead: 150°C/W
- Reverse Voltage Range: 1.8 V to 43 V
- Leakage Current: typically 50 µA at Vr max
- Electrostatic Discharge Rating: >16 kV (Class 3)
- RoHS and Pb-Free compliant
- UL Flammability Rating: UL 94 V-0
- Mechanical: Compact, corrosion-resistant finish, easily solderable
- Environmental: Operational from -55°C to +150°C
- Designed for high-density PCB mounting and automotive applications
Buy the ON Semiconductor MMSZ4689T3G – Reliable Zener Voltage Regulator for Industrial Applications
Secure your supply of high-quality Zener diodes by purchasing the ON Semiconductor MMSZ4689T3G online today. These 500 mW surface mount devices provide precise voltage regulation with a wide range from 1.8 V to 43 V, perfect for compact electronic designs. Their robust construction and high ESD rating ensure long-term reliability in automotive, industrial, and consumer electronics. Easy to mount on FR-4 or FR-5 boards, these diodes feature corrosion-resistant finishes and are UL 94 V-0 rated for fire safety. Order now to enhance your circuit performance with top-tier components.
Buy ON Semiconductor MMSZ4689T3G now and experience unmatched reliability and performance in high-density voltage regulation applications.
Frequently Asked Questions
Where can I buy ONSEMI MMSZ4689T3G?
You can click on the BUY or RFQ button to purchase MMSZ4689T3G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MMSZ4689T3G?
You can download the MMSZ4689T3G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MMSZ4689T3G?
ONSEMI
