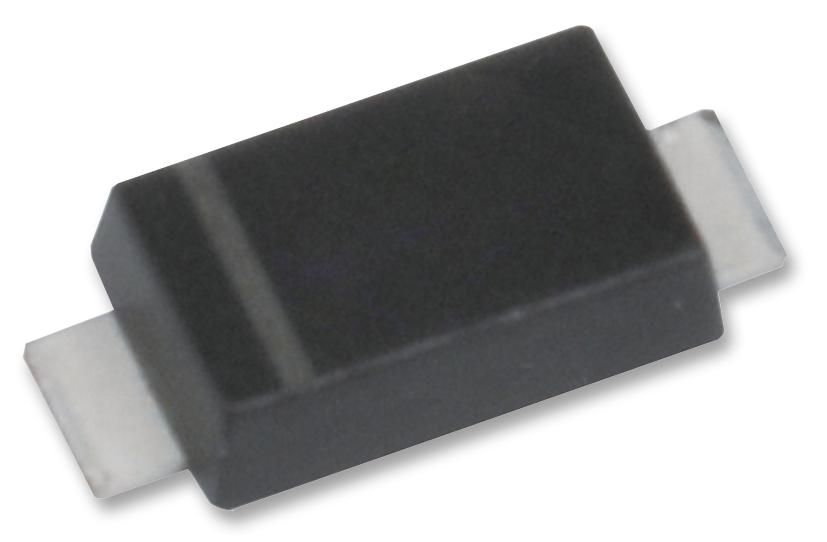

ONSEMI MM3Z56VB Voltage Regulation Diode
This product is a small, thin SMD Zener diode designed for voltage regulation in electronic circuits. Featuring a wide Zener voltage selection range from 2.4 V to 75 V, it offers reliable voltage stabilization for various devices. With a Power Dissipation of 200 mW and a maximum junction temperature of 150°C, it ensures durability and high-performance operation. Its matte tin finish makes it suitable for Pb-free applications, and its compact package enhances space efficiency in densely populated circuit boards. Ideal for precision voltage regulation, surge suppression, and voltage reference duties in industrial and consumer electronics.
ONSEMI MM3Z56VB Voltage Regulation Diode Specifications:
- Power Dissipation: 200 mW
- Maximum Junction Temperature: 150°C
- Storage Temperature Range: -65°C to +150°C
- Thermal Resistance, Junction to Ambient: 595 °C/W
- Package: SOD-323FL (CASE 477AB)
- Marking: Band indicating Cathode, specific device code
- Zener Voltage Range: 2.4 V to 75 V, tolerance of +2%
- Forward Voltage at 10 mA: 1.0 V
- Maximum Compliance Current: 94 mA
- Maximum Reverse Power Dissipation: Not specified, typical 200 mW
- Lead Finish: Matte Tin (Sn), Pb-Free
- Maximum Surge Current: Not specified, designed for pulse conditions
- Maximum Impedance: Derived from 60-cycle AC voltage test
- Operating Temperature Range: -65°C to +150°C
- Physical Size: Compact SMD package suitable for space-constrained designs,
Buy the ON Semiconductor MM3Z56VB – Reliable Voltage Regulation Diode for Industrial Applications
Purchase the ON Semiconductor Series MM3Z56VB voltage regulation diode online today and ensure reliable voltage stabilization for your industrial and consumer electronic devices. Compact and efficient, it offers a wide voltage range from 2.4 V to 75 V with a power dissipation of 200 mW, suitable for space-constrained assemblies. With a Pb-free matte tin finish and high junction temperature tolerance, this diode ensures durability and consistent performance. Order now to enhance your circuit's stability and achieve dependable operation across various applications.
Order your ON Semiconductor Series MM3Z56VB voltage regulation diode today and give your electronic projects the dependable quality they deserve, ensuring stable operation in compact designs.
Frequently Asked Questions
Where can I buy ONSEMI MM3Z56VB?
You can click on the BUY or RFQ button to purchase MM3Z56VB from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM3Z56VB?
You can download the MM3Z56VB datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM3Z56VB?
ONSEMI
