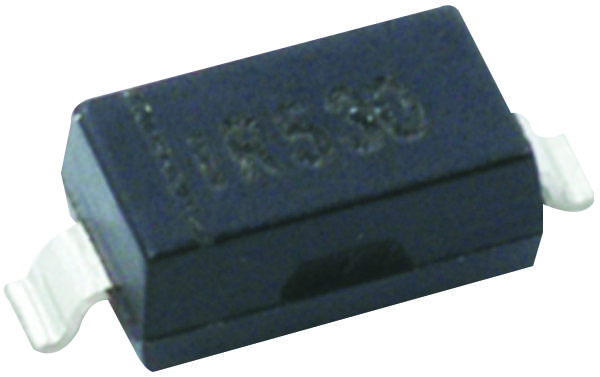

ONSEMI MMSZ5272BT3G Zener Diode
The MMSZ5272BT3G is a surface mount Zener diode designed for voltage regulation in high-density applications. With a power rating of 500 mW and a SOD-123 package, it offers reliable performance across a wide reverse voltage range from 2.4 V to 110 V at thermal equilibrium. Suitable for automotive and general purpose circuitry, this diode features a corrosion-resistant finish, a maximum case temperature of 260°C for soldering, and an ESD rating of Class 3 (>16 kV). Its compact design ensures efficient thermal management and ease of automated assembly, making it ideal for protecting sensitive electronics from voltage surges and transient conditions.
ONSEMI MMSZ5272BT3G Zener Diode Specifications:
- Power Rating: 500 mW on FR-4 or FR-5 board
- Package: SOD-123 surface mount
- Maximum Soldering Temperature: 260°C for 10 seconds
- Polarity: Cathode marked with polarity band
- Reverse Voltage Range: 2.4 V to 110 V at thermal equilibrium
- Thermal Resistance: Junction-to-Ambient 340°C/W, Junction-to-Lead 150°C/W
- Operating Temperature Range: -85°C to +150°C
- Flammability Rating: UL 94 V-0
- ESD Rating: Class 3 (>16 kV)
- Mechanical Case: Void-free, transfer-molded thermosetting plastic
- Finish: Corrosion resistant, solderable
- Maximum Case Temperature for Soldering: 260°C for 10 seconds
Buy the Buy ON Semiconductor Zener Voltage Regulator Part Number MMSZ5272BT3G Online
Purchase the ON Semiconductor SeriesMMSZ5272BT3G Zener diode online today for high-performance voltage regulation in automotive, consumer electronics, and industrial applications. This 500 mW surface mount diode features wide voltage range from 2.4 V to 110 V, robust thermosetting plastic case, and corrosion-resistant finish. Its compact size and compatibility with automated assembly make it ideal for high-density circuit boards. With a maximum soldering temperature of 260°C, ease of installation is guaranteed. Protect your electronics from voltage surges and spikes by ordering this reliable, Pb-free diode now.
Order your ON Semiconductor SeriesMMSZ5272BT3G Zener diode today and ensure reliable voltage regulation for your automotive and high-density electronic projects.
Frequently Asked Questions
Where can I buy ONSEMI MMSZ5272BT3G?
You can click on the BUY or RFQ button to purchase MMSZ5272BT3G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MMSZ5272BT3G?
You can download the MMSZ5272BT3G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MMSZ5272BT3G?
ONSEMI
