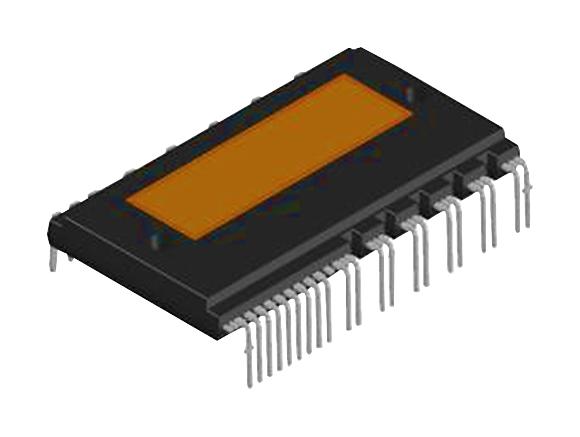

ONSEMI NFAM2065L4BT Inverter Power Module
The NFAM2065L4BT is a fully-integrated three-phase inverter power module rated at 650 V and 20 A, suitable for industrial drives, pumps, fans, and automation applications. It features independent high-side gate drivers, built-in UV protection, integrated bootstrap diodes, separate emitter connections for precise current sensing, and a temperature sensor for monitoring thermal performance. This Pb-free device offers high reliability with under-voltage lockout, fast switching capabilities, and robust thermal and electrical characteristics, making it ideal for controlling PMSM, BLDC, and asynchronous motors in demanding industrial environments.
ONSEMI NFAM2065L4BT Inverter Power Module Specifications:
- Voltage Rating: 650 V
- Current Rating: 20 A
- Package: DIP39, Mini DIP case 31.0x54.5 mm
- Module Case Temperature: -40 to +125°C
- Operating Junction Temperature: -40 to +150°C
- Isolation Voltage: 2500 V (60 Hz, 1 min)
- Supply Voltage: 450 V (VPP), Surge up to 500 V
- Control Supply Voltage: 13.5 V to 16.5 V
- High-side Gate Drive Voltage: 135 V to 165 V
- Bandgap Temperature Sensor: VTS or Thermistor (T)
- Resistance of Thermistor at 25°C: 47 kΩ
- Thermistor B-Constant: 4050 K
- Thermal Resistance (Junction to Case): 13°C/W
- Switching Times: t_on ~0.8-1.9 us, t_off ~1.4-2.1 ms
- Peak Collector Current: 40 A (≤1 ms pulse)
- Peak Repetitive Reverse Voltage: 650 V
- Short Circuit Protection: Yes
- Built-in bootstrap diodes, external fault detection, current sensing inputs, and temperature sensor
