ONSEMI MMUN2235LT1G Digital Transistor
This series of digital transistors features monolithic bias networks, combining a transistor with integrated resistors to simplify circuit design, reduce board space, and lower component count. Suitable for automotive and other applications, these devices are AEC-Q101 qualified, Pb-Free, halogen, and BFR free, ensuring reliability and compliance. They offer maximum ratings of 50 V for collector-base and collector-emitter voltages, with continuous collector currents of 100 mA. Thermal characteristics vary by package, providing efficient heat dissipation and operational stability over temperature ranges from -55°C to +150°C.
ONSEMI MMUN2235LT1G Digital Transistor Specifications:
- Collector-Base Voltage: 50 Vdc
- Collector-Emitter Voltage: 50 Vdc
- Collector Current: 100 mA (continuous)
- Input Forward Voltage: 12 Vdc
- Input Reverse Voltage: 6 Vac
- Total Device Dissipation (SC-59): 230 mw at 25°C, 338 mw max
- Total Device Dissipation (SOT-23): 246 mw at 25°C, 400 mw max
- Total Device Dissipation (SC-70/SOT-323): 202 mw at 25°C, 310 mw max
- Total Device Dissipation (SC-75): 200 mw at 25°C, 300 mw max
- Total Device Dissipation (SOT-723): 260 mw at 25°C, 600 mw max
- Total Device Dissipation (SOT-1123): 254 mw at 25°C, 297 mw max
- Junction to Ambient Thermal Resistance (various packages): 408-618 °C/W
- Junction to Lead Thermal Resistance (various packages): 174-408 °C/W
- Storage Temperature Range: -55°C to +150°C
- Package Types: SC-59, SOT-23, SC-70/SOT-323, SC-75, SOT-723, SOT-1123
- RoHS, Pb-Free, Halogen and BFR Free, RoHS Compliant

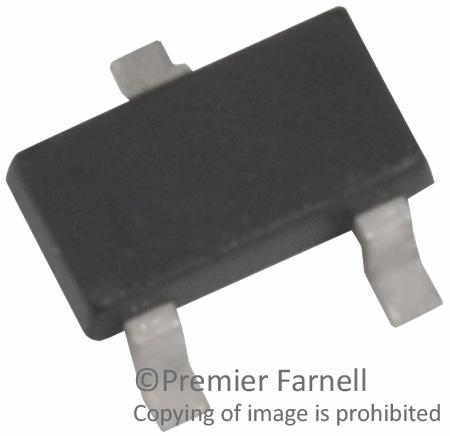

Buy the Buy ON Semiconductor Digital Transistor Part Number MMUN2235LT1G Online
Enhance your circuit efficiency with the digital transistor featuring integrated bias resistors. Perfect for automotive, automation, and electronic control systems, this Pb-Free device simplifies your design by eliminating external resistors, saving space, and reducing costs. Rated for 50 V maximum voltages and 100 mA collector current, it ensures reliable operation across as broad as -55°C to +150°C temperature range. Its durable, RoHS-compliant construction makes it suitable for various industrial and automotive applications. Order now to upgrade your system's performance seamlessly.
Buy ON Semiconductor MMUN2235LT1G now and experience unmatched reliability and compact automation control solutions.
Frequently Asked Questions
Where can I buy ONSEMI MMUN2235LT1G?
You can click on the BUY or RFQ button to purchase MMUN2235LT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MMUN2235LT1G?
You can download the MMUN2235LT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MMUN2235LT1G?
ONSEMI
