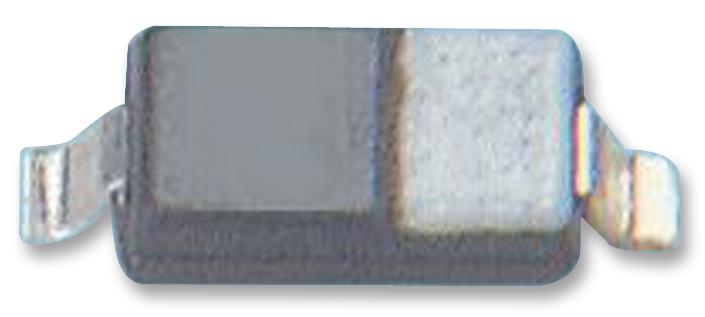

ONSEMI SZMM3Z8V2T1G Zener Diode
The SZ MM3Z8V2T1G is a compact, surface-mount Zener diode designed for voltage regulation and overvoltage protection in space-constrained applications. With a power dissipation of 300 mW, it features a small body size of 0.067” x 0.049” (1.7 mm x 1.25 mm), low body height of 0.035” (0.9 mm), and is suitable for cellular phones, portable devices, and high-density PC boards. It offers a wide breakdown voltage range from 2.4 V to 75 V, ensuring reliable performance with a maximum junction temperature of +150°C and UL 94 V-0 flammability rating.
ONSEMI SZMM3Z8V2T1G Zener Diode Specifications:
- Power Dissipation: 300 mW
- Package: SOD-323 surface mount
- Body Dimensions: 0.067” x 0.049” (1.7 mm x 1.25 mm)
- Body Height: 0.035” (0.9 mm)
- Breakdown Voltage Range: 2.4 V to 75 V
- Maximum Case Temperature for Soldering: 260°C for 10 Seconds
- Junction Temperature Range: -65°C to +150°C
- Flammability Rating: UL 94 V-0
- Lead Finish: Plated with Pb-Sn or Sn (Pb-Free)
- ESD Rating: Class 3 (> 16 kV) Human Body Model
- Mechanical Case: Transfer-molded plastic, corrosion resistant surfaces
- Mounting Position: Any
Buy the ON Semiconductor Series SZ Zener Voltage Regulator: SZMM3Z8V2T1G
Order the ON Semiconductor SZMM3Z8V2T1G Zener diode online today for reliable voltage regulation in space-sensitive electronics. Featuring a 300 mW power rating and a wide breakdown voltage range from 2.4 V to 75 V, this surface-mount diode is ideal for cellular phones, portable devices, and high-density PCBs. Its compact size of 0.067” x 0.049” (1.7 mm x 1.25 mm), low height of 0.035” (0.9 mm), and corrosion-resistant plastic case ensure durability and efficiency. Perfect for electronics engineers and designers seeking quality over space constraints.
Get ON Semiconductor SZMM3Z8V2T1G today—built for precision and long-lasting durability in voltage regulation applications.
Frequently Asked Questions
Where can I buy ONSEMI SZMM3Z8V2T1G?
You can click on the BUY or RFQ button to purchase SZMM3Z8V2T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part SZMM3Z8V2T1G?
You can download the SZMM3Z8V2T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of SZMM3Z8V2T1G?
ONSEMI
