ONSEMI MOC217M Optocoupler
These surface-mount optocouplers consist of gallium arsenide infrared LEDs optically coupled to monolithic silicon phototransistors. Designed in a plastic SOIC-8 package, they provide reliable electrical insulation and are suitable for high-density applications, feedback control, circuit coupling, and switching. Featuring closely matched current transfer ratios and guaranteed minimum collector-emitter voltage ratings, these devices are UL1577 compliant and have high safety standards, making them ideal for isolating signals and protecting systems in industrial and electronic applications.
ONSEMI MOC217M Optocoupler Specifications:
- Package: SOIC-8 surface mount with 0.050" lead spacing
- Isolation Voltage: 2500 VACrms for 1 minute
- Peak Working Insulation Voltage: 565 Vpeak
- Input Forward Voltage: 1.07 to 1.8 V, depending on model
- Collector-Emitter Voltage: 30 V, Emitter-Collector Voltage: 7 V
- Input Current: 60 mA continuous, Peak 1.0 A
- Output Power Dissipation: 150 mW, Derate above 25°C
- Junction Temperature Range: -40°C to +125°C
- Storage Temperature Range: -40°C to +125°C
- Lead Solder Temperature: 260°C for 10 seconds
- Response Time: Turn-On 75 μs, Turn-Off 5.7 μs
- Insulation Resistance: > 10^10 Ω at 500 VDC
- Reflow Profile: Max temp 260°C, ramp rates 3°C/sec up and 6°C/sec down

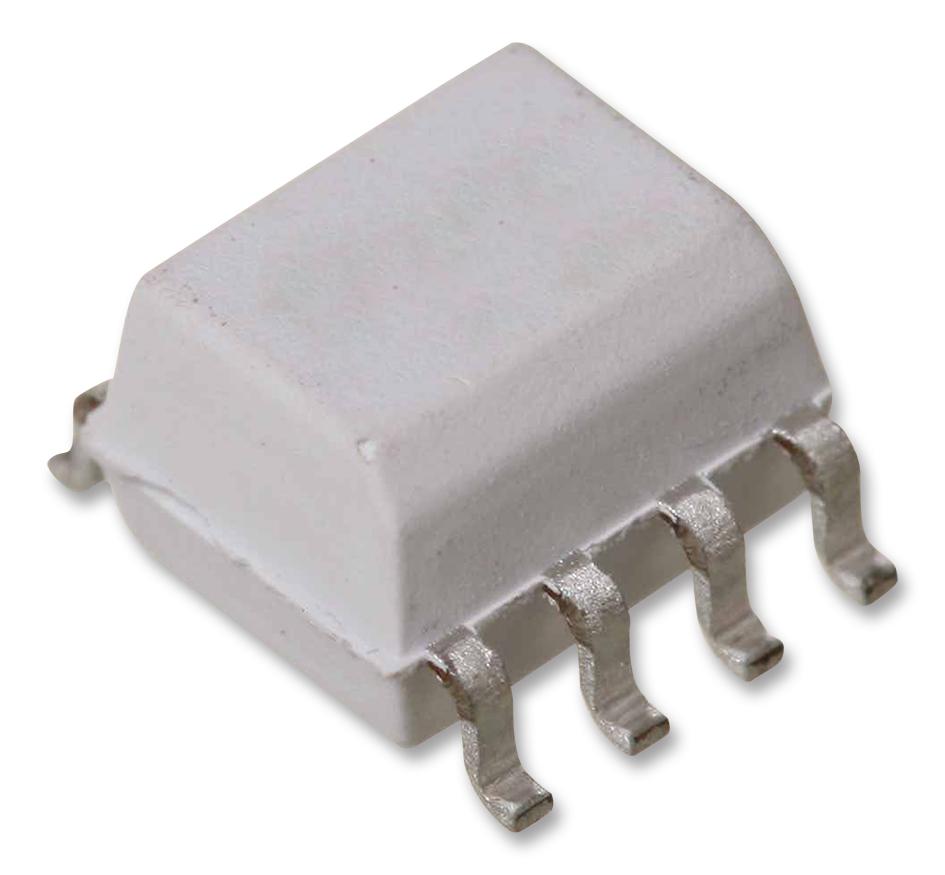

Buy the Buy ON Semiconductor Optocoupler Part Number MOC217M Online
Purchase the ON Semiconductor MOC217M optocoupler online today to ensure high-quality signal isolation in your electronic systems. Its compact SOIC-8 package simplifies installation in high-density layouts, while its high safety ratings, including UL1577 certification and 565 Vpeak insulation voltage, provide reliable electrical insulation. Designed for feedback control, switching, and circuit coupling applications, this device guarantees consistent performance with guaranteed minimum transfer ratios. Order now and benefit from fast delivery and manufacturer's warranty to enhance your project’s reliability and safety.
Buy ON Semiconductor MOC217M now and experience unmatched reliability with high isolation voltage and compact surface-mount design for your circuit protection needs.
Frequently Asked Questions
Where can I buy ONSEMI MOC217M?
You can click on the BUY or RFQ button to purchase MOC217M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC217M?
You can download the MOC217M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC217M?
ONSEMI
