ONSEMI MC78M05BDTRKG Voltage Regulator
The MC78M05BDTRKG is a 3-terminal positive voltage regulator designed for low current applications, providing a stable 5V output. It features internal current limiting, thermal shutdown, and safe-area compensation for the internal pass transistor, ensuring reliable operation. The device is suitable for local and on-card voltage regulation, with a maximum output current of 500mA when properly heat-sinked. No external components are required. It operates within -40°C to 125°C, ideal for industrial use. Lead times may be extended; the product is exempt from discounts, ensuring dependable performance in various environments.
ONSEMI MC78M05BDTRKG Voltage Regulator Specifications:
- Output Voltage: 5V (±2%)
- Maximum Output Current: 500mA
- Input Voltage Range: 6.0 V to 18V (35V max)
- Operating Temperature Range: -40°C to 125°C
- Thermal Shutdown: Yes
- Current Limiting: Yes
- Safe-Area Compensation: Yes

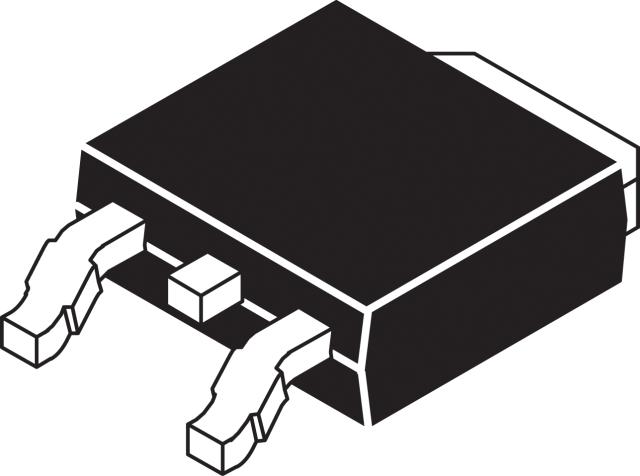

- Package: DPAK-3
- No external components required
- Power Dissipation: Internally limited
- Thermal Resistance, Junction-to-Air: 92°C/W
- Junction-to-Case: 50°C/W
- Lead-Free: Yes
- Voltage Tolerance: ±2%
Buy the ON Semiconductor Series NCV78M00 Voltage Regulator: MC78M05BDTRKG
Experience stable 5V voltage regulation with the MC78M05BDTRKG, a high-quality regulator designed for industrial and local circuit applications. With internal current limiting, thermal shutdown, and safe-area compensation, it offers robust operation up to 125°C. The device requires no external components, simplifying your design process. Its maximum output current of 500mA ensures dependable power delivery. Available in a compact DPAK-3 package, it guarantees reliable performance, durability, and ease of integration into your electronic systems. Order online today for fast delivery and dependable operation.
Order your ON Semiconductor Series NCV78M00 MC78M05BDTRKG today and ensure reliable voltage regulation for your industrial projects with no external components needed.
Frequently Asked Questions
Where can I buy ONSEMI MC78M05BDTRKG?
You can click on the BUY or RFQ button to purchase MC78M05BDTRKG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC78M05BDTRKG?
You can download the MC78M05BDTRKG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC78M05BDTRKG?
ONSEMI
