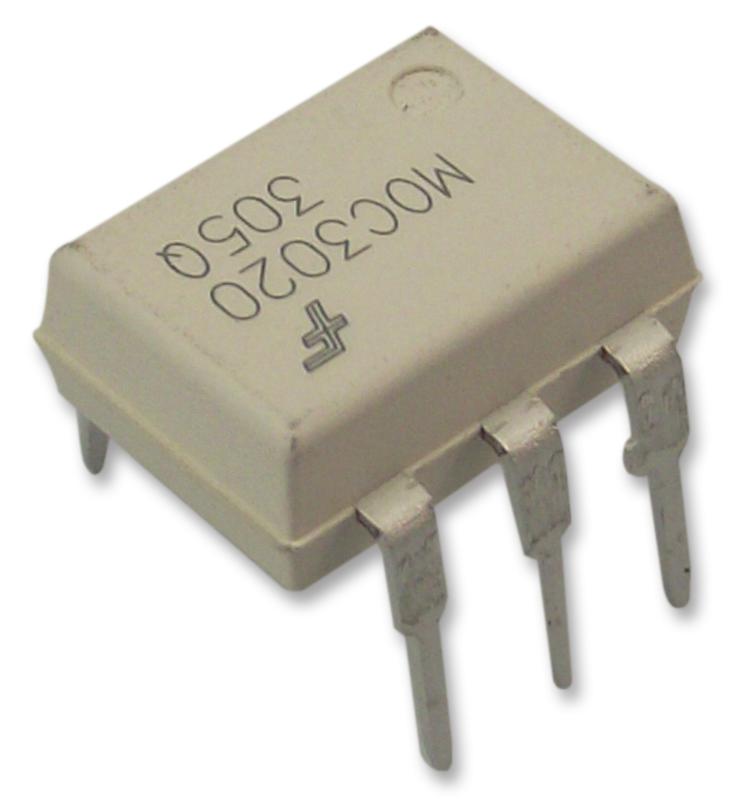

ONSEMI MOC3020M Triac Driver Optocoupler
The MOC3020M is a 6-pin DIP optocoupler designed for interfacing electronic controls with power triacs to manage resistive and inductive loads in industrial control systems. It features a peak blocking voltage of 400 V, low input forward voltage of approximately 1.50 V, and excellent electrical isolation up to 4170 VAC rms. Suitable for applications such as motor control, static switches, and lighting dimmers, the device ensures safe, reliable operation with high insulation resistance and compliance with DIN EN/IEC standards. Its compact form factor enhances versatility in various control circuit designs.
ONSEMI MOC3020M Triac Driver Optocoupler Specifications:
- Peak Blocking Voltage: 400 V
- Input Forward Voltage: 1.15 V to 1.50 V
- Isolation Voltage: 4170 VAC rms
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +150°C
- Total Device Power Dissipation: 330 mW at 25°C
- Junction Temperature Range: -40°C to +100°C
- Lead Solder Temperature: 260°C for 10 seconds
- Lead Pin Configuration: 6-pin DIP
- Isolation Resistance: >10^9 Ω at 500 V
- In-Rush and Surge Current Capability: 1 A peak
- Safety Standards: UL1577, DIN EN/IEC60747-5-5
- Application: Motor control, static AC power switch, lighting control, industrial automation
Buy the ON Semiconductor Series Triac Driver Output Optocoupler: MOC3020M
Purchase the ON Semiconductor MOC3020M online now to enhance your industrial control systems. This 6-pin DIP optocoupler offers 400V peak blocking voltage and exceptional electrical insulation, making it ideal for motor control, light dimming, and static switches. Designed for high reliability and safety, it complies with DIN EN/IEC standards and ensures safe operation in various applications. Buy today for durable performance and seamless integration into your control circuitry, ensuring long-lasting efficiency and safety in your projects.
Get ON Semiconductor MOC3020M today—built for industrial automation, power control, and reliable electrical isolation.
Frequently Asked Questions
Where can I buy ONSEMI MOC3020M?
You can click on the BUY or RFQ button to purchase MOC3020M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3020M?
You can download the MOC3020M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3020M?
ONSEMI
