ONSEMI MMSZ4689ET1G Voltage Regulator Diode
The MMSZ4689ET1G is a high-quality Zener diode suited for voltage regulation in automotive and high-density electronic applications. It features a 5.36 V nominal zener voltage, 50 mA maximum reverse current, and a power dissipation of 500 mW on FR-5 boards. Packaged in a compact SOD-123 surface-mount case, it offers excellent thermal resistance, a UL 94 V-0 flammability rating, and is AEC-Q101 qualified for automotive stability. Its corrosion-resistant finish ensures durability in demanding environments, making it ideal for precision voltage reference and protection circuits.
ONSEMI MMSZ4689ET1G Voltage Regulator Diode Specifications:
- Maximum Power Dissipation: 500 mW on FR-5 Board
- Zener Voltage Range: 1.8 V to 43 V, Nominal 5.36 V for MMSZ4689ET1G
- Maximum Reverse Current: 50 mA
- Thermal Resistance: Junction-to-Ambient 340°C/W, Junction-to-Lead 150°C/W
- Maximum Soldering Temperature: 260°C for 10 Seconds
- Package: SOD-123, Transfer-molded plastic, corrosion-resistant finish
- Flammability Rating: UL 94 V-0
- Polarity: Cathode indicated by polarity band
- Operating Temperature Range: -55°C to +150°C
- ESD Rating: Class 3 (> 16 kV) per Human Body Model
- Pb-Free Packages Available
- Peak Power: 225 W (8 x 20 us pulse)

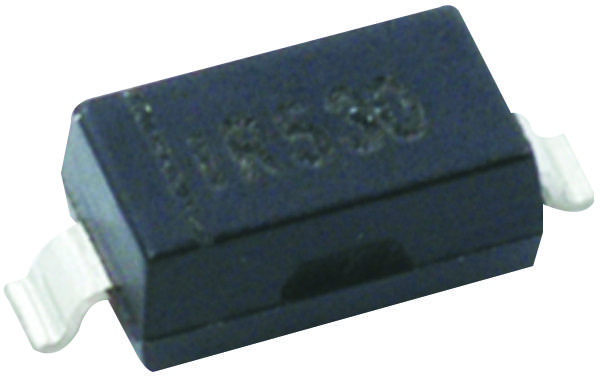

Buy the Buy ON Semiconductor Zener Voltage Regulator Part Number MMSZ4689ET1G Online
Enhance your electronic circuit designs with the ON Semiconductor MMSZ4689ET1G Zener diode. This compact, surface-mount device offers reliable voltage regulation with a 5.36 V nominal voltage and 500 mW power rating. Its SOD-123 package supports automated assembly, making it ideal for high-density applications. built to endure demanding environments with excellent thermal management, corrosion resistance, and compliance with automotive standards. Order online today for fast delivery and ensure your electronic systems operate with stability and precision.
Get ON Semiconductor MMSZ4689ET1G today—designed for precise voltage regulation and long-lasting durability in automotive and industrial circuits.
Frequently Asked Questions
Where can I buy ONSEMI MMSZ4689ET1G?
You can click on the BUY or RFQ button to purchase MMSZ4689ET1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MMSZ4689ET1G?
You can download the MMSZ4689ET1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MMSZ4689ET1G?
ONSEMI
