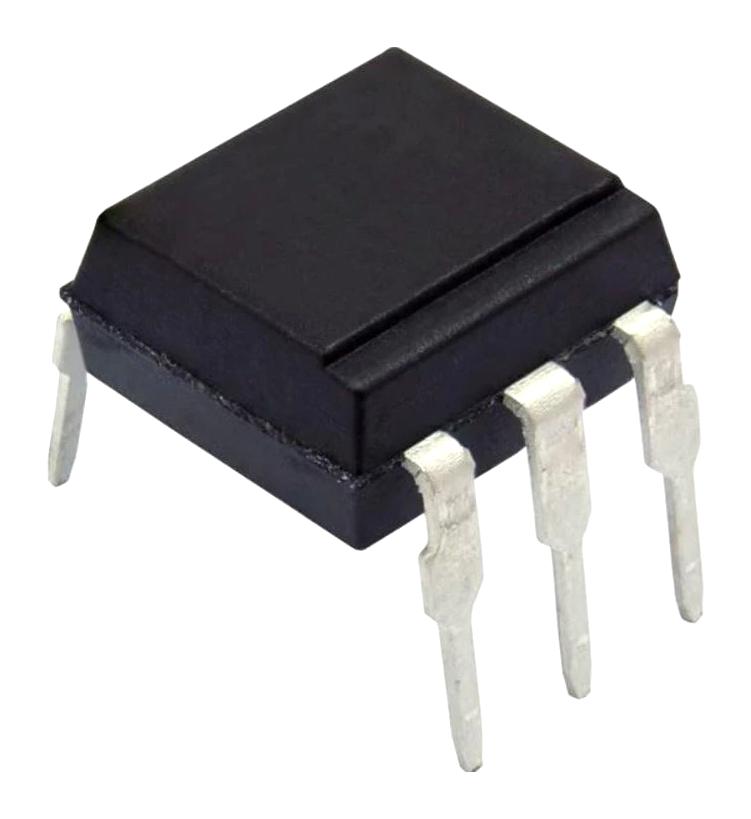

ONSEMI MOC3021TVM Optocoupler
The MOC3021TVM is a six-pin DIP optocoupler designed for industrial control applications, traffic lights, and solenoid controls. It features a GaAs infrared diode and a silicon bilateral switch, providing optical isolation with a peak blocking voltage of 400 V. Its compact PDIP6 package measures 8.51x6.35 mm with a 2.54 mm pitch, ensuring safe electrical insulation up to 4170 VAC for one minute. Suitable for interfacing low-voltage control circuits with high-voltage AC loads, it complies with DIN EN/IEC60747-5-5 standards and is Pb-free.
ONSEMI MOC3021TVM Optocoupler Specifications:
- Package: PDIP6 8.51x6.35 mm, 2.54 mm pitch
- Peak Blocking Voltage: 400 V
- Optical isolation voltage: 4170 VAC for 1 minute
- Maximum Working Insulation Voltage: 850 V peak
- Insulation Resistance: >10^9 Ω at 500 V
- Lead Spacing: 2.54 mm
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +150°C
- Power Dissipation: 330 mW (at 25°C)
- Lead Solder Temperature: 260°C for 10 seconds
- Climatic Classification: 40/85/21
- Pollution Degree: 2
- External Clearance & Creepage: 27 mm
- Insulation Over-Voltage: 6000 Vpeak
- Safety Certifications: UL1577, IEC60747-5-5
- Device Type: Optocoupler, Triac driver
Buy the ON Semiconductor Series MOC3021TVM: Optocoupler 400 V Peak Voltage
Order the ON Semiconductor MOC3021TVM online today to ensure reliable optical isolation for industrial, traffic, and solenoid control applications. Featuring a 400 V peak blocking voltage and a compact 8.51x6.35 mm package, this Pb-free optocoupler is ideal for safely interfacing low-voltage control circuits with high-voltage AC loads. Its high insulation voltage of 4170 VAC and compliance with IEC standards guarantee safety and durability in demanding environments. Buy online now for fast delivery and professional support.
Get ON Semiconductor MOC3021TVM today—built for industrial control reliability and safe high-voltage isolation.
Frequently Asked Questions
Where can I buy ONSEMI MOC3021TVM?
You can click on the BUY or RFQ button to purchase MOC3021TVM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3021TVM?
You can download the MOC3021TVM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3021TVM?
ONSEMI
