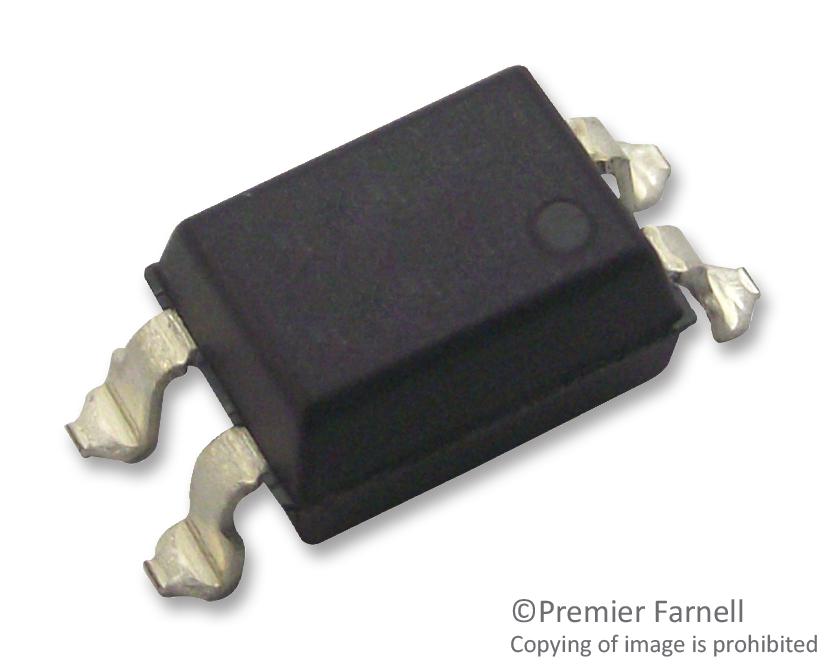

ONSEMI FOD817B3SD Optocoupler
The FOD817B3SD is a 4-pin DIP optocoupler featuring a gallium arsenide infrared emitting diode driving a silicon phototransistor, designed for isolation and signal transfer in industrial and electronic applications. It offers a current transfer ratio of 200-400%, with a minimum BVcgo of 70 V. Certified for UL1577 and IEC60747-5-5 safety standards, it supports AC line monitoring, power supply regulation, and microprocessor interfaces, ensuring reliable electrical insulation and high current transfer efficiency for industrial control systems and digital logic circuits.
ONSEMI FOD817B3SD Optocoupler Specifications:
- Current Transfer Ratio: 200-400%
- Minimum BVcgo: 70 V
- Isolation Voltage: 5,000 VAC for 1 minute
- Pins: 4-pin DIP
- Package: Dual in-line
- Safety Standards: UL1577, IEC60747-5-5
- Collector-Emitter Voltage: 70 V
- Emitter-Collector Voltage: 6 V
- Collector Current: 50 mA
- Power Dissipation: 150 mW
- Lead Solder Temperature: 260°C for 10 seconds
- Storage Temperature Range: -55°C to +150°C
- Operating Temperature Range: -55°C to +105°C
- Response Time: 4-18 microseconds
- Isolation Resistance: >10^10 ohms
- Case Temperature: 175°C
- Case Material: Plastic dual in-line
- Reliability Standards: UL Listed, IEC certification
- Application Suitability: Power regulation, digital logic, microprocessor inputs, industrial safety
- Dimensions: Standard 4-pin DIP, lead spacing 0.4 inches
Buy the Buy ON Semiconductor FOD817B3SD Part Number FOD817B3SD Online
Purchase the ON Semiconductor FOD817B3SD optocoupler online today and ensure secure isolation, high current transfer ratio of 200-400%, UL and IEC safety approvals, and reliable performance in industrial control, power supply, and digital logic systems. Designed for demanding environments, this 4-pin DIP package delivers excellent electrical insulation, fast response times, and robust construction, making it ideal for sensor interfaces, power regulation, and microprocessor inputs worldwide. Get yours now and enhance your electronic system's safety and efficiency with ease.
Buy ON Semiconductor FOD817B3SD now and experience unmatched reliability and high current transfer performance for industrial control and digital applications.
Frequently Asked Questions
Where can I buy ONSEMI FOD817B3SD?
You can click on the BUY or RFQ button to purchase FOD817B3SD from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FOD817B3SD?
You can download the FOD817B3SD datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FOD817B3SD?
ONSEMI
