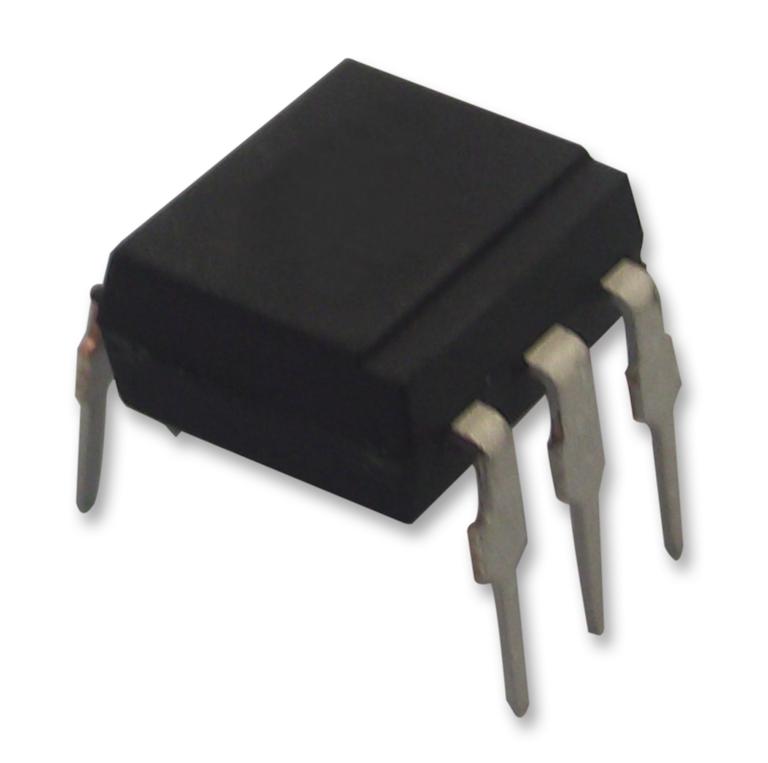

ONSEMI MOC3041M Triac Driver Optocoupler
The MOC3041M is a 6-pin DIP zero-cross triac driver optocoupler designed for simplifying the logic control of AC power in industrial and consumer applications. It features a GaAs infrared LED coupled with a silicon detector that triggers a bilateral triac at 250 V peak voltage, enabling safe and efficient switching of 115 VAC loads. Suitable for applications like solenoid controls, lighting automation, static power switches, and motor drives, it complies with safety standards UL1577 and IEC60747-5-5, providing reliable isolation and high-speed switching capability.
ONSEMI MOC3041M Triac Driver Optocoupler Specifications:
- Peak Blocking Voltage: 250 V (MOC3031M, MOC3032M, MOC3033M), 400 V (MOC3041M, MOC3042M, MOC3043M)
- Output Current: Peak Repetitive Surge Current 1 A, Holding Current 400 mA
- Isolation Voltage: 4170 VAC for 1 Minute, Meets IEC60747-5-5
- Input Forward Voltage: 1.25 - 1.50 V at 30 mA
- Reverse Leakage Current: 0.01 - 100 BA at 6 V
- Maximum Operating Temperature: -40°C to +85°C, Junction temperature up to +100°C
- Package Type: 6-pin DIP, Various options including SMT and DIN EN/IEC60747-5-5
- Safety and Regulatory Approvals: UL1577, IEC60747-5-5, Pollution Degree 2, External Creepage 27mm
- Reflow Soldering Profile: 260°C maximum, 42 seconds above 245°C, ramp rate 1.82°C/sec
Buy the Fairchild MOC3041M – Reliable AC Power Control for Industrial Applications
Order now the Fairchild MOC3041M optocoupler online to facilitate safe AC power control in your industrial, lighting, or automation systems. This high-quality device features a 250 V peak voltage, zero-cross detection for minimized EMI, and robust isolation ratings of 4170 VAC. Easy to incorporate into your designs, it ensures efficient switching of AC loads such as relays, motors, and lamps. Trust the reliability of Fairchild’s high-performance optocoupler for all your power control needs, available for quick online purchase with fast delivery.
Buy Fairchild MOC3041M now and experience unmatched reliability and performance in AC power switching and industrial automation.
