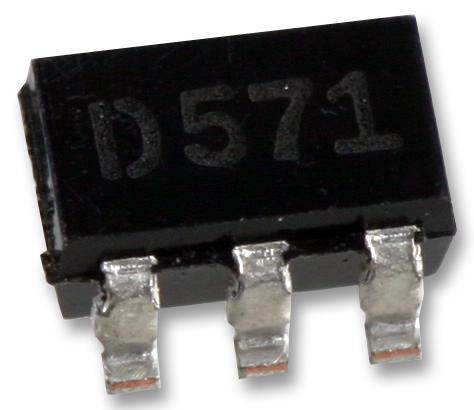

ONSEMI SRV054MR6T1G Surge Protection Array
The SRVOS-4MR6 surge protection diode array provides reliable ESD, EFT, and lightning transient protection for high-speed data and communication lines. Designed for sensitive electronics such as USB, digital video interfaces, and monitors, this low capacitance device ensures minimal signal distortion. It features low clamping voltage (<12.5 V at 1 A), low working voltage of 5 V, and high peak power dissipation of 300 W. The compact TSOP-6 package supports multiple protection configurations, making it ideal for high-speed, sensitive electronic applications requiring robust transient overvoltage protection.
ONSEMI SRV054MR6T1G Surge Protection Array Specifications:
- Package Type: TSOP-6
- Maximum Power Dissipation: 300 W
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Peak Pulse Current (IEG 61000-4-5): 12 A
- ESD Protection: IEC 61000-4-2 (Air +15 kV, Contact +8 kV), Human Body Model (HBM) 16,000 V
- Clamping Voltage at 1 A: 12.5 V
- Clamping Voltage at 5 A: 175 V
- Junction Capacitance: 3.0 to 5.0 pF at 1 MHz
- Temperature Rating: -55°C to +125°C
- Flammability Rating: UL 94V-0
- Lead Solder Temperature: 260°C for 10 seconds
- Designed for high-speed communication lines, USB, DVI, monitors, Ethernet
- Low capacitance (<5 pF) for high-speed interfaces
Buy the ON Semiconductor SRV05-4MR6 – Reliable Surge Protection for Industrial Applications
Secure your electronic systems with the SRV05-4MR6 surge protection diode array. Offering low capacitance and high peak power, it safeguards sensitive components from ESD, EFT, and lightning strikes. Its compact TSOP-6 package supports easy integration in high-speed communication and data lines, including USB, DVI, and Ethernet interfaces. The device features low clamping voltage, UL 94V-0 flammability rating, and robust temp ratings. Order online today for reliable overvoltage protection in your critical electronic applications.
Buy ON Semiconductor SRV05-4MR6 now and protect your high-speed data lines with proven surge and ESD protection technology.
