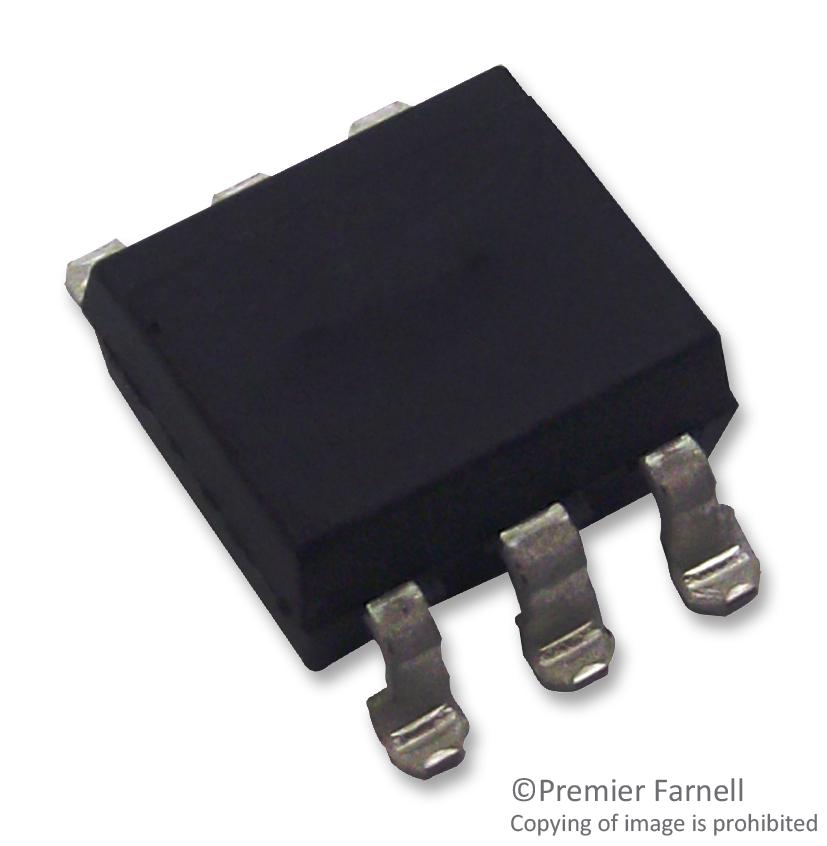

ONSEMI MOC3041SM Zero-Cross TRIAC Driver
The MOC3041SM is a high-quality zero-cross TRIAC driver optocoupler featuring a GaAs infrared LED and silicon detector. It isolates control circuits from AC loads while providing reliable switching in industrial controls, motor drives, lighting, and power management applications. Designed for switching 115VAC equipment with zero-voltage crossing behavior, it enhances system safety and reduces electrical noise. The device supports an insulation voltage of up to 850V, withstands high overvoltage surges of 6000V peak, and is suitable for various electronic switching tasks requiring electrical isolation and robustness.
ONSEMI MOC3041SM Zero-Cross TRIAC Driver Specifications:
- Maximum working insulation voltage: 850 Vpeak
- Peak surge voltage: 6000 Vpeak
- Isolation surge voltage: 7500 Vac(pk)
- Input forward voltage: 1.25 V at 30 mA
- Reverse leakage current: 0.01 A (100 HA) at 6V
- Peak trigger current: 15 mA (varies with model)
- Off-state output voltage: 250 V or 400 V depending on model
- Junction temperature range: -40°C to +100°C
- Operating temperature: -40°C to +85°C
- Power dissipation: 150–250 mW depending on conditions
- Device package: Through Hole or Surface Mount
- Lead spacing: 0.4 inches (for through hole variants)
- Dimensions: Length approximately 10.54 mm, width roughly 3.28-3.53 mm
- Conformance: VDE recognized, UL compliant
Buy the Fairchild Series MOC3041SM Zero-Cross TRIAC Driver: MOC3041SM
Purchase the Fairchild MOC3041SM online today and elevate your power control systems. With robust electrical insulation up to 850V, high surge voltage tolerance, and precise zero-cross switching, this optocoupler is perfect for industrial controls, lighting, and motor drives. Its reliability ensures safe operation in demanding environments while reducing electrical noise. Easy to integrate, durable, and VDE recognized, the MOC3041SM provides efficient and safe isolation for your AC switching needs. Order now and enhance your power management solutions seamlessly.
Buy Fairchild MOC3041SM now and experience unmatched reliability and performance in AC control and power switching applications.
