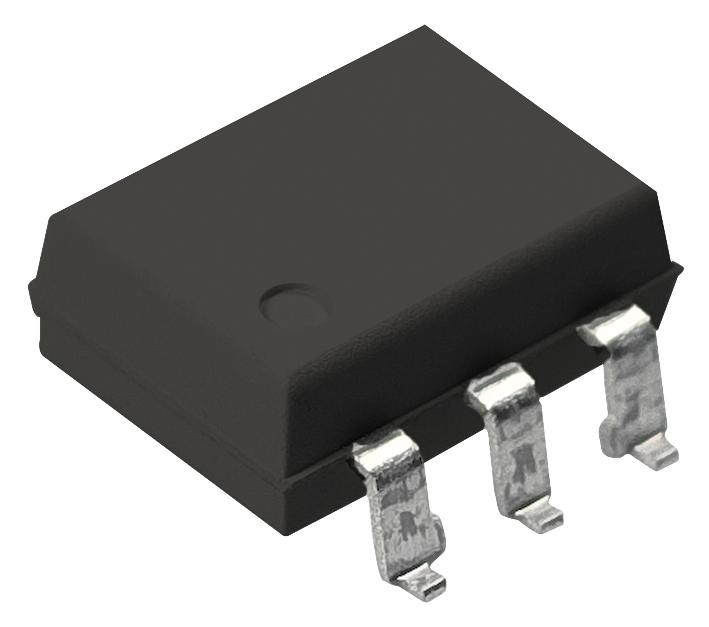

ONSEMI MOC3041SVM Triac Driver Optocoupler
The MOC3041SVM is a 6-pin DIP zero-cross triac driver optocoupler designed for safe and reliable control of AC loads in industrial applications. It features a GaAs infrared LED optically coupled to a silicon detector, providing excellent isolation and zero voltage crossing switching to minimize electrical noise. Suitable for controlling solenoid valves, lighting, motors, and solid-state relays, it supports up to 400 V peak voltage and offers a dv/dt of 2000 V/us typical. Certified under UL1577, it complies with IEC standards and is Pb-free, ensuring safety and regulatory compliance for industrial control systems.
ONSEMI MOC3041SVM Triac Driver Optocoupler Specifications:
- Package: DIP 6-Pin, 8.51x6.35 mm
- Pin Pitch: 2.54 mm
- Peak Blocking Voltage: 250 V (MOC306xM), 400 V (MOC304xM)
- Isolation Voltage: 4170 V AC RMS for 1 minute
- Forward Voltage of LED: 1.25 to 1.50 V at 30 mA
- Reverse Leakage Current: 0.01 to 0.1 mA at 6 V
- Peak On-State Voltage: 1.8 to 3.0 V at 100 mA
- Surge Peak Current: 1 A (non-repetitive)
- Power Dissipation: 250 mW (device at 25°C)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +150°C
- dv/dt: 2000 V/μs typical
- Compliance: UL1577, IEC60747-5-5
- Pb-Free: Yes
Buy the ONSEMI MOC3041SVM – Reliable AC Load Control Optocoupler for Industrial Applications
Purchase the ONSEM MOC3041SVM optocoupler online today and ensure high-performance AC load control with isolation, zero-cross switching, UL safety certification, and durability for industrial applications. Effective for solenoid and motor control, lighting automation, and relays, it offers excellent dv/dt and high voltage handling. Guaranteed to meet safety standards, this device is perfect for engineers seeking reliable and compliant solutions for automation and power control tasks. Optimize your systems with this advanced, Pb-free optocoupler now!
Buy ONSEM! MOC3041SVM now and experience unmatched reliability and performance in AC load switching and industrial control systems.
Frequently Asked Questions
Where can I buy ONSEMI MOC3041SVM?
You can click on the BUY or RFQ button to purchase MOC3041SVM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3041SVM?
You can download the MOC3041SVM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3041SVM?
ONSEMI
