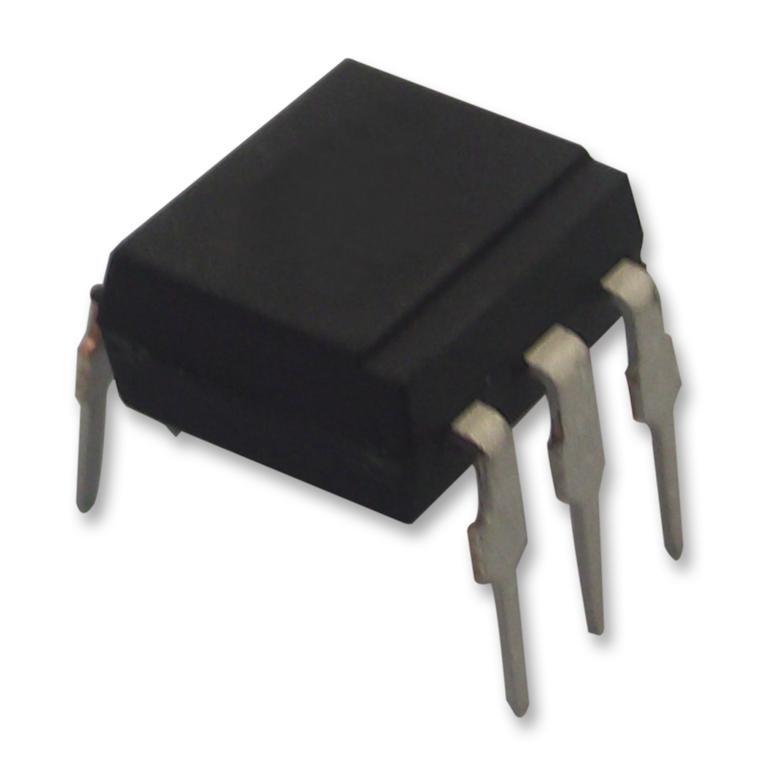

ONSEMI MOC3053M Triac Driver Optocoupler
The MOC3053M is a 6-pin DIP random-phase triac driver optocoupler designed for AC line isolation and control applications. It features a GaAs infrared LED coupled to a silicon bilateral AC switch, with a peak blocking voltage of 600 V and enhanced static dv/dt performance for stable switching of inductive loads. Suitable for resistive and inductive loads, it enables snubberless operation in low-noise environments, making it ideal for solenoid, lamp ballast, dimmer, and motor control applications, complying with safety standards DIN EN IEC 60747-5-5 and UL 577.
ONSEMI MOC3053M Triac Driver Optocoupler Specifications:
- Peak blocking voltage: 600 V
- Isolation Test Voltage, Type: 4360 Vpeak
- Maximum Working Insulation Voltage: 850 Vpeak
- Input Forward Voltage (IF=10mA): 1.50 V
- Reverse Leakage Current (VR=3V): 100 HA
- Peak Off-State Output Terminal Voltage: 600 V
- Maximum Storage Temperature: -40 to +150 °C
- Operating Temperature Range: -40 to +85 °C
- Total Device Power Dissipation at 25°C: 330 mW
- Derate Above 25°C: 44 mW/°C
- Lead Solder Temperature: 260°C for 10 s
- Device Package: 6-pin DIP
Buy the ON Semiconductor Series Triac Driver: MOC3053M
Purchase the ON Semiconductor MOC3053M online today for reliable AC line isolation and control. This triac driver optocoupler offers 600V peak voltage, enhanced dv/dt stability, and complies with safety standards. Ideal for resistive and inductive loads such as solenoids, dimmers, and motor controls, its robust design ensures long-term performance. The device's high isolation voltage and snubberless capability make it suitable for clean power switching, noise-sensitive environments, and applications requiring dependable operation and safety compliance, providing excellent value for industrial control needs.
Get ON Semiconductor MOC3053M today—built for precision and long-lasting durability in AC line control systems.
Frequently Asked Questions
Where can I buy ONSEMI MOC3053M?
You can click on the BUY or RFQ button to purchase MOC3053M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3053M?
You can download the MOC3053M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3053M?
ONSEMI
