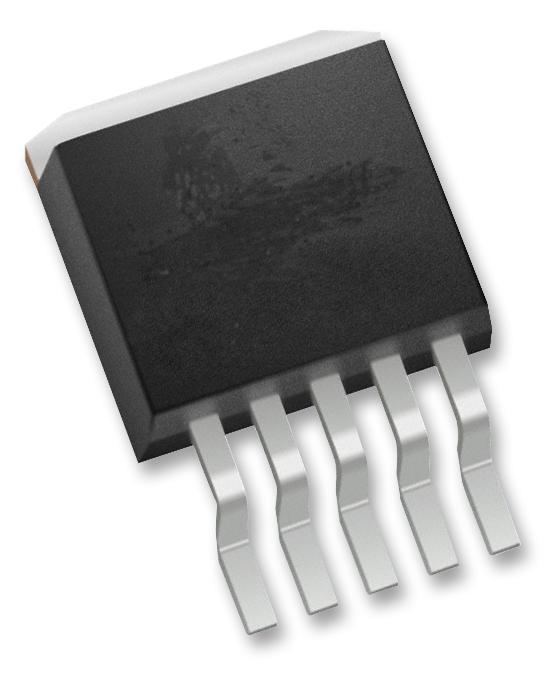

ONSEMI LM2596DSADJG Switching Regulator
The LM2596 series is a high-efficiency, adjustable step-down switching regulator capable of delivering up to 3.0 A of continuous load current. It features a wide input voltage range up to 40 V, a fixed 150 kHz oscillator frequency, and self-protection features including thermal shutdown and cycle-by-cycle current limiting. Its compact TO-220 and DPAK packages, combined with low quiescent current and high efficiency, make it ideal for power supply applications such as battery chargers, pre-regulators, and inverting regulators. Easy external component selection and robust thermal management ensure reliable performance in demanding environments.
ONSEMI LM2596DSADJG Switching Regulator Specifications:
- Adjustable Output Voltage Range 1.23 V - 37 V
- Load Current: Guaranteed 3.0 A
- Input Voltage Range: up to 40 V
- Oscillator Frequency: 150 kHz fixed
- Protection Features: Thermal shutdown, cycle-by-cycle current limit
- Package Types: TO-220 and DPAK
- Temperature Range: -40°C to +125°C junction operating
- Maximum supply voltage: 45 V
- Standby quiescent current: typ 80 μA
- Thermal resistance junction-to-ambient: 65°C/W (TO-220) / 70°C/W (DPAK)
Buy the ON Semiconductor Series LM2596 Adjustable Buck Regulator: LM2596DSADJG
Order the ON Semiconductor LM2596DSADJG today and enhance your power supply designs with this high-efficiency, adjustable buck regulator capable of delivering 3A of load current. Its wide input voltage range up to 40V and internal compensation simplify external component selection, ensuring reliable and stable operation across various applications. The robust protection features including thermal shutdown and cycle-by-cycle current limiting, combined with low quiescent current and compact packages, make it the ideal choice for battery chargers, pre-regulators, and inverter circuits. Ensure your designs are efficient, reliable, and ready for future demands by purchasing online now.
Get ON Semiconductor LM2596DSADJG today—built for precision and long-lasting durability in switching power supplies.
Frequently Asked Questions
Where can I buy ONSEMI LM2596DSADJG?
You can click on the BUY or RFQ button to purchase LM2596DSADJG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM2596DSADJG?
You can download the LM2596DSADJG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM2596DSADJG?
ONSEMI
