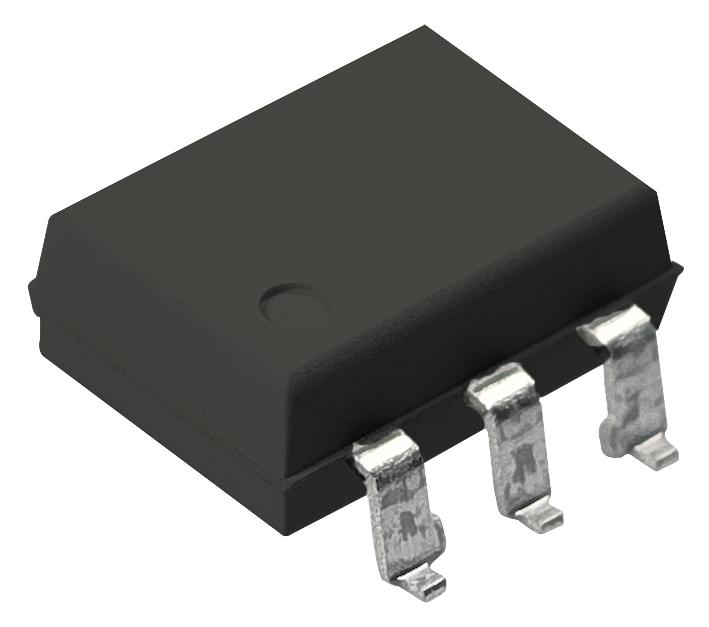

ONSEMI MOC3063SR2VM AC Power Control Optocoupler
The MOC3063SR2VM is a 6-pin DIP zero-cross triac driver optocoupler with a peak blocking voltage of 600 V, designed for easy control of AC loads. It features optical isolation, safety approvals including UL1577 and IEC standards, and is suitable for applications like solenoid control, static power switching, motor starters, and lighting automation. Its high dv/dt capability and safety ratings make it ideal for reliable interfacing in industrial control systems, ensuring safe and efficient switching of AC power loads.
ONSEMI MOC3063SR2VM AC Power Control Optocoupler Specifications:
- Peak blocking voltage: 600 V
- Isolation voltage: 4170 VACRMS, 1 minute
- Input forward voltage: 1.3 - 1.5 V at 30 mA
- Maximum operating temperature: -40°C to +85°C
- Junction temperature range: -40°C to +100°C
- Power dissipation: 250 mW at 25°C
- Isolation resistance: > 10^9 Ω at 500 V
- External creepage and clearance: 27 mm
- Lead solder temperature: Max. 260°C
- Climatic classification: 40/85/21
- Pollution degree: 2
- Inhibit voltage: 20 V
- Surge current: 1 A peak
- Trigger current: as low as 5 mA
- Trigger voltage: 18 - 30 V
- Isolation capacitance: 0.2 pF
Buy the ON Semiconductor MOC3063SR2VM – Reliable AC Power Control for Industrial Applications
Purchase the ON Semiconductor MOC3063SR2VM online today and ensure safe, efficient AC load switching with high voltage isolation, superior performance, and compliance with international safety standards. This durable optocoupler simplifies control of industrial equipment like motors, lighting, and relays, providing high dv/dt and zero-cross switching capabilities for maximum safety. Easy ordering and fast delivery make it the ideal choice for engineers seeking reliable and certified power control solutions for demanding automation applications.
Buy ON Semiconductor MOC3063SR2VM now and experience unmatched reliability and performance in AC power switching and industrial automation.
Frequently Asked Questions
Where can I buy ONSEMI MOC3063SR2VM?
You can click on the BUY or RFQ button to purchase MOC3063SR2VM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3063SR2VM?
You can download the MOC3063SR2VM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3063SR2VM?
ONSEMI
